Fully Automatic Solar Laminator

Fully Automatic solar laminator is the most important process in the whole
solar panel production line. It is used to bond multiple layers of materials
(Glass, EVA, Solar cell, Backsheet) together by heating &vacuum process in
chambers of the laminator.

Types of Fully Automatic solar laminator For Sale
According to customer's demand, we can give the best suggestion to make
satisfied.
Single-layer & Single-chamber Solar Panel Laminator
The most basic type of fully automatic laminator is easy operation, and
convenient to maintain. Main components: loading stage, one heating laminating
stage, and unloading stage.

Single-layer & Double-chamber Solar Panel Laminator
The most popular one, capacity is double of a single chamber, It integrates
automatic/semi-automatic/ manual three control modes. Fully automatic and
manual loading, laminating and unloading. Main components: loading stage, two
heating laminating stages, unloading stage.

Single-layer & Three-chamber Solar Panel Laminator
The special type one, with the cooling process, the module temperature can
decrease quickly without bubbles. The temperature in the cooling chamber can be
adjusted, to realize the cooling process in the cooling stage. Main components:
loading stage, two heating laminating stages, one cooling stage, and the
unloading stage.

Double-layer & Single-chamber Solar Panel Laminator
Double stack type can improve capacity and save space, Each chamber of the
laminator can be used independently without mutual interference. Main
components: two layers, a loading stage, one heating laminating stage,
unloading stage.

Double-layer & Double-chamber Solar Panel Laminator
Two laminating stages adopt linkage mode to improve the repetition accuracy of
module location. Main components: two layers, loading stage, two heating
laminating stage, unloading stage.

Double-layer & Three-chamber Solar Panel Laminator
Annual capacity is around 200-250MW, with different sizes and different
capacities. cooling by water circulating in the plate, very fast. Main
components: two layers, loading stage, two heating laminating stages, one
cooling stage, and unloading stage.

Fully Auto Buffering Multi Layer Photovoltaic Module Laminator
The new heating method, the only and first one who design it, has a design
patent, high efficiency and big capacity. Main components: multilayers, buffer
loading stage, one/two heating laminating stage, buffer unloading stage.

Fully Automatic Solar Module Laminator Specification
Name Spec
Control Mode Touch Screen
Temperature Control PID intelligent Control
Temperature Uniformity ±2℃
Temperature Accuracy ±1.5℃
Temperature Range RT--180℃
Compressed Air Pressure 0.6MPa—0.8MPa

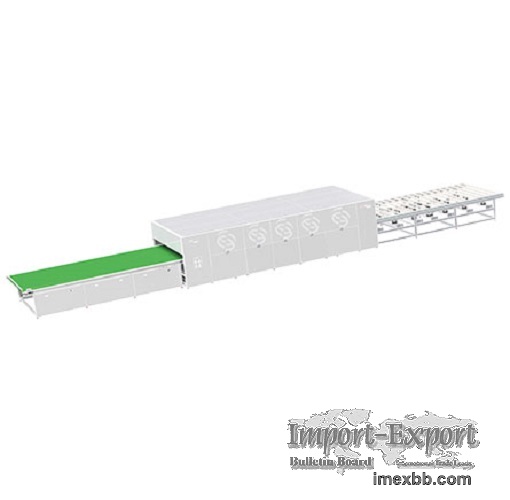

Solar Laminator Working Principle
Solar laminator is mechanical equipment that compacts multilayer material under
vacuum conditions.

Solar encapsulation is material to laminate the photovoltaic solar cells to
enhance their efficiency and durability.

The solar cell circuits are floated in between the materials.

FAQ Of Fully Automatic Solar Module Laminator
What Is Solar Panel Laminator?
Laminator is used to producing solar modules, and encapsulate different
materials such as glass, EVA, solar cell, back sheet, and so on into one by
heating and vacuuming.

Which Solar Type Of Module Is The Most Efficient?
How Are Solar Panels Laminated?
What Is Solar Backsheet?

The Options of Loading & Unloading Plateform of Laminator
Fixed Type Loading Platform
This type is a general type, applied to enough factory area, one-to-one feeding
type. Adopt a whole piece of PVC belt for conveying, stable transmission
accuracy location, low failure rate, and fastest tact time.

Lifting Type Loading Platform
This type adopts chain lifting, one to two feeding types, is flexible to
contact with automatic production line directly, does not need an extra lifter,
and can save space. Lifting steady, low failure rate.

Buffer Type Loading Platform
This type adopts fixed buffer, tact time is lower than fixed loading platform,
but can save more space. so It is widely used in the case of limited plant
area.

Fixed Type Unloading Platform
This type is a general type, applied to enough factory area, one-to-one feeding
type. Adopt a whole piece of PVC belt for conveying, stable transmission
accuracy location, low failure rate, and fastest tact time.

Lifting Type Unloading Platform
This type adopts chain lifting, one to two feeding type, is flexible to contact
with automatic production line directly, does not need extra lifter, can save
space. Lifting steady, low failure rate.

Buffer Type Lifting Unloading Platform
This type adopts lift buffer, one to two type, applied to limited factory area,
can save space by instead of lifter, tact time is lower than fixed buffer type.

Fixed Type Buffer Unloading Platform
This type adopts fixed buffer, tact time is lower than fixed unloading
platform, but can save more space. so It is widely used in the case of limited
plant area.

Silicone membrane
High-quality synthetic material membrane sheet, used for laminating solar
modules, long life use times.

Teflon sheet
High-quality synthetic material membrane sheet, used for laminating and
transferring solar modules, long life use times.

Solar panel production line

More details of solar panel laminator machine price, please contact us.
