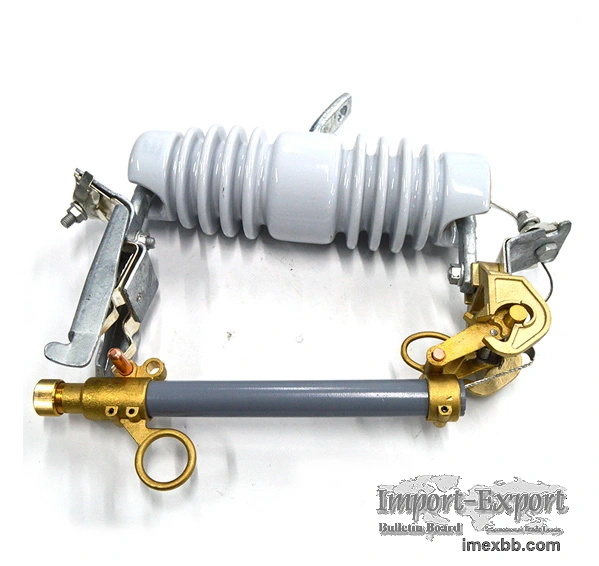

Fuse Cutout

Fuse cutouts, also called cutout switch, are used in primary overhead feeder
lines and taps to safeguard distribution transformers against overloads and
current surges. They function as a combination of a fuse and a switch. The
transformer will be disconnected from the line when the fuse melts due to an
overcurrent brought on by a defect in the transformer or customer circuit.
Utility linemen standing on the ground and using a long insulating stick known
as a "hot stick" can manually open it as well.

Applications of Fuse Cutout
Overcurrent Protection in Distribution Lines

Electric fence cut out switch are strategically installed on overhead
distribution lines to protect against overcurrent conditions. When the current
exceeds a predetermined level due to faults or overloads, the fuse element in
the cutout melts, interrupting the circuit and preventing damage to downstream
equipment.

Transformer Protection

Electric fence shut off switch are commonly employed to safeguard distribution
transformers. They provide a protective barrier against excessive currents,
disconnecting the transformer in the event of a fault and preventing damage to
the equipment.

Feeder Line Protection

Installed on feeder lines, Fuse Cutouts contribute to the protection of the
electrical distribution system by isolating specific sections during faults.
This sectionalizing capability minimizes the impact of faults on the entire
distribution network.

Switchgear Protection

Fuse Cutouts are integrated into switchgear systems to enhance protection
against overloads and short circuits. Their inclusion in switchgear
configurations ensures the safe and reliable operation of electrical
distribution equipment.

Fault Isolation and Network Reliability

Fuse Cutouts play a crucial role in fault isolation, helping maintain network
reliability. By isolating faulty sections, they prevent the spread of faults
and enable the rest of the distribution system to continue operating.

Cost-Effective Fault Interruption

Fuse Cutouts offer a cost-effective solution for interrupting circuits during
overcurrent conditions. The sacrificial fuse element is designed for easy
replacement, providing an efficient and economical means of protecting the
distribution system.

For more information about power line fittings, please feel free to contact us!

Minimum Order: 1000 pieces
