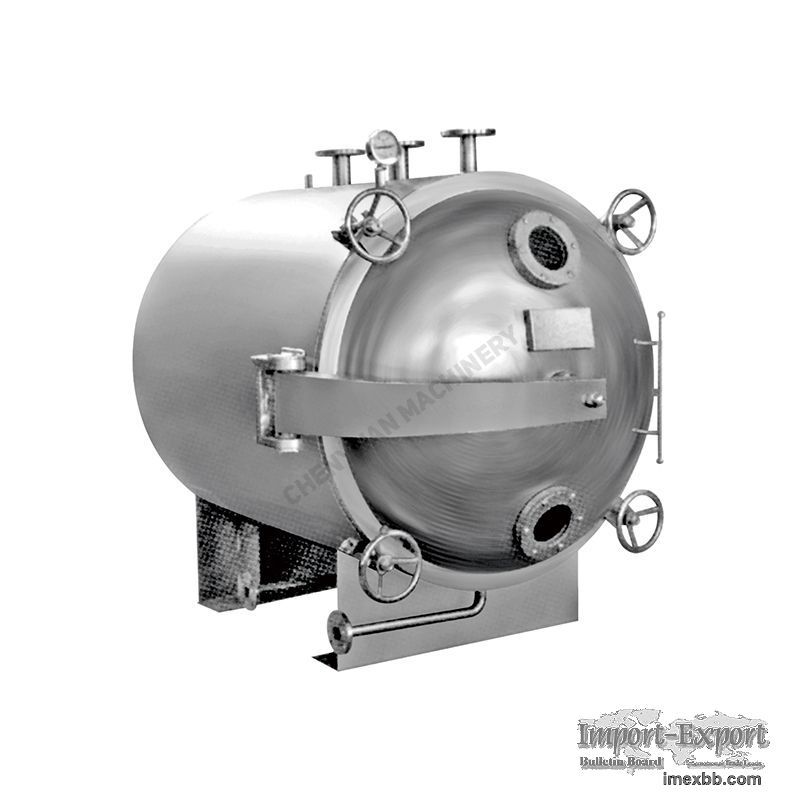

FZG/YZG Vacuum Dryer

YZG Vacuum Dryer is suitable for low temperature drying of heat sensitive
materials that are easy to decompose, agglomerate and deteriorate at high
temperatures. It is widely used in such industries as medicine, chemical
industry, food, electronics, etc.
Vacuum drying means to heat the materials to be dried under vacuum conditions.
If a vacuum pump is used for air evacuation and humidity removal, the drying
speed will be increased.
Note: If a condenser is adopted, the solvent in the materials can be recovered
through the condenser. It the SK series water loop vacuum pump is adopted,
there is no need to use the condenser, so that energy is saved.
Technical Parameter
Model YZG-600  YZG-800 YZG-1000 YZG-1400 FZG-10 FZG-15
FZG-20
Dimensions inside the drying oven(mm)    Φ600*976 φ800*1247
 φ1000*1527 Φ1400*2054 1500*1060*1220 1500*1400*1220 1500*1800*1220
Dimensions outside the drying oven(mm) 1135*810*1020 1700*1045*1335
1693*1190*1500 2380*1675*1920 1924*1720*1513 1924*2060*1513 1924*2500*1513
Drying frame layer quantity 4 4 6 8 5 8
12
Distance between layers(mm) 81 82 102 102 122 122
122
Drying disc size(mm) 310×600×45 520×410×45 520×410×45
460×640×45 460×640×45 460×640×45 460×640×45
Drying disc quantity 4 8 12 32 20 32 48
Working pressure in the drying frame pipe ≤0.784 ≤0.784 ≤0.784 ≤0.784
≤0.784 ≤0.784 ≤0.784
Drying frame working temperature 35～150 35～150 35～150 35～150 35～150
35～150 35～150
Vacuum degree under idle load in the oven  -0.1  -0.1  -0.1  -0.1
 -0.1  -0.1  -0.1
Water vaporization rate at -0.1MPa and heating temperature 110℃ 7.2
7.2 7.2 7.2 7.2 7.2 7.2
Vacuum pump model and power when a condenser is adopted 2X-15A 2KW 2X-30A
3KW 2X-30A 3KW 2X-70A 5.5KW 2X-70A 5.5KW 2X-70A5.5KW 2X-90A
2KW
Vacuum pump model and power when no condenser is adopted SZ-0.51.5KW
SZ-12.2KW SZ-12.2KW SZ-12.2KW SZ-24KW SZ-24KW SZ-25.5KW
Drying oven weight 250 600 800 1400 1400 2100 3200
