gate valve

*产品摘要 :
JIS flanged gate valve 10K
Working temperature-29~425℃ WCB -40~500℃SS
Material: Carbon steel, Forged steel, SS304 SS316 SS316L, etc.
Specificatio
*详细描述 :

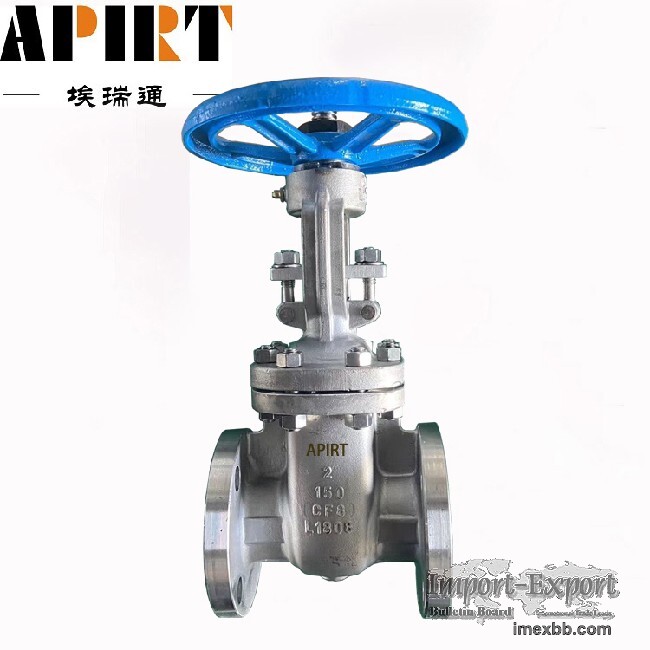

JIS Cast Steel Gate Valve

Gate valve, is a valve that opens by lifting a round or rectangular
gate/wedge out of the path of the fluid. The distinct feature of a gate
valve is the sealing surfaces between the gate and seats are planar, so
gate valves are often used when a straight-line flow of fluid and minimum
restriction is asked.
Gate valves are characterized as having either a rising or a non-rising
stem. Rising stems provide a visual indication of valve position because
the stem is attached to the gate such that the gate and stem rise and
lower together as the valve is operated.
Non-rising stem valves may have a pointer threaded onto the upper end of
the stem to indicate valveposition. Non-rising stems are used underground
or where vertical space is limited.

A). Design&Manufacture: JIS B2073B B2083
B). Face to Face: JIS B2002
C). Flange End: JIS B2212 B2214
D). Test: JIS B2003
2). Sizes: 1/2" - 24" or 12mm - 600mm
3). Pressure Rating: 10K, 20K
4). Material: Stainless steel, cast steel
5). Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric
actuator.

Minimum Order: 10 pieces
