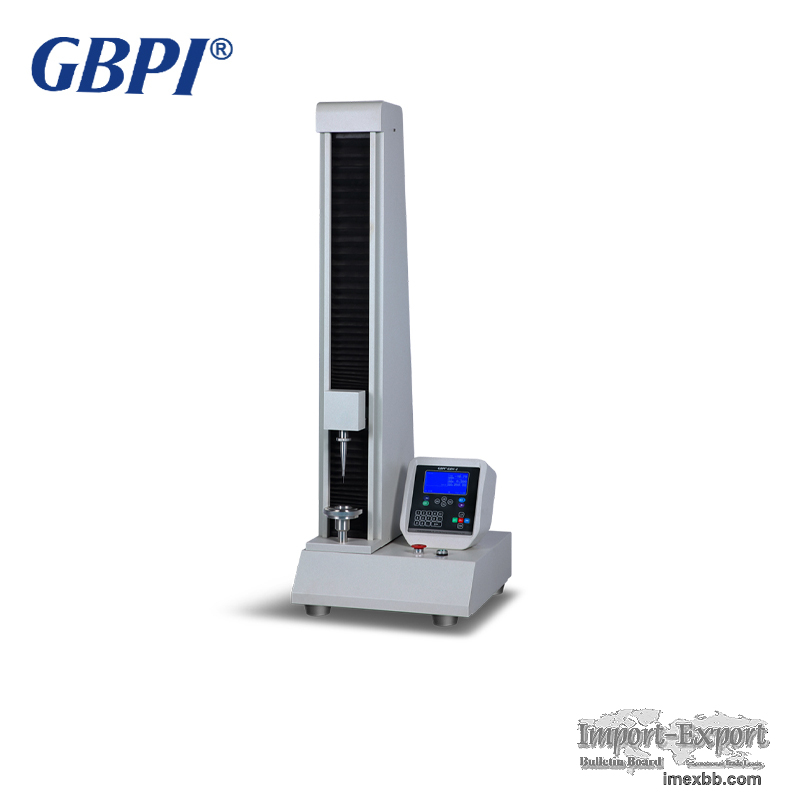

GBPI Multifunctional Tensile Tester for Face Mask

Application:
To test the tensile strength, peeling strength, heat sealing strength, tearing strength, piercing
strength of the plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-
woven fabrics and other packaging materials, widely used in industries of plastic films, food,
pharmaceuticals, inspection agency, research institute, college and so on.

Standard:
GB 19083-2010，YY0469-2011，GB 2626-2006，YY/T0969-2013，YY/T0681.13-2014，GB/ , T32610-2016

Features:
Flexible and various interfaces and control methods, which can be used for multiple tests such as
stretching, peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc., setting of
multiple parameters such as speed, thickness, and pinch.

High measurement accuracy, the test measurement accuracy can reach 0.5 grade.

The whole process is controlled by a computer, and the test is displayed online after the test. It can
automatically perform data storage, data analysis and comparison functions, curve overlay recording
function, on-line printing function, arbitrary zoom function.

The full digital control system cooperates with imported AC servo system and motor to control the zero
displacement.

High-precision ball screw loading, stable loading, long testing machine life, long-term stability and
energy saving.

Load/deformation measurement: With multiple sub-channels, it supports extended measurement of multiple
sensors.

Wide speed range, suitable for high and low activitytests.
The open data structure, whether it is result parameters or process data, allows users to call
randomly, users are very convenient. Self-editing report function, the data can be easily imported into
an Excel table for easy post-processing.

The control and measurement unit can choose the built-in type (simple appearance, save space) and
external type (easy to upgrade, maintain and operate separately from the computer).

Have perfect limit protection, overload protection, emergency stop, and other safety protection
functions. Make the test run safe and reliable.

A high sampling rate (100 times/second), make the test data more accurate.

The core uses imported parts, which is more accurate and more durable

Double-column table structure, beautiful and elegant, good rigidity.

Optional pneumatic fixture, suitable for a variety of fixtures.

Minimum Order: 1 sets
