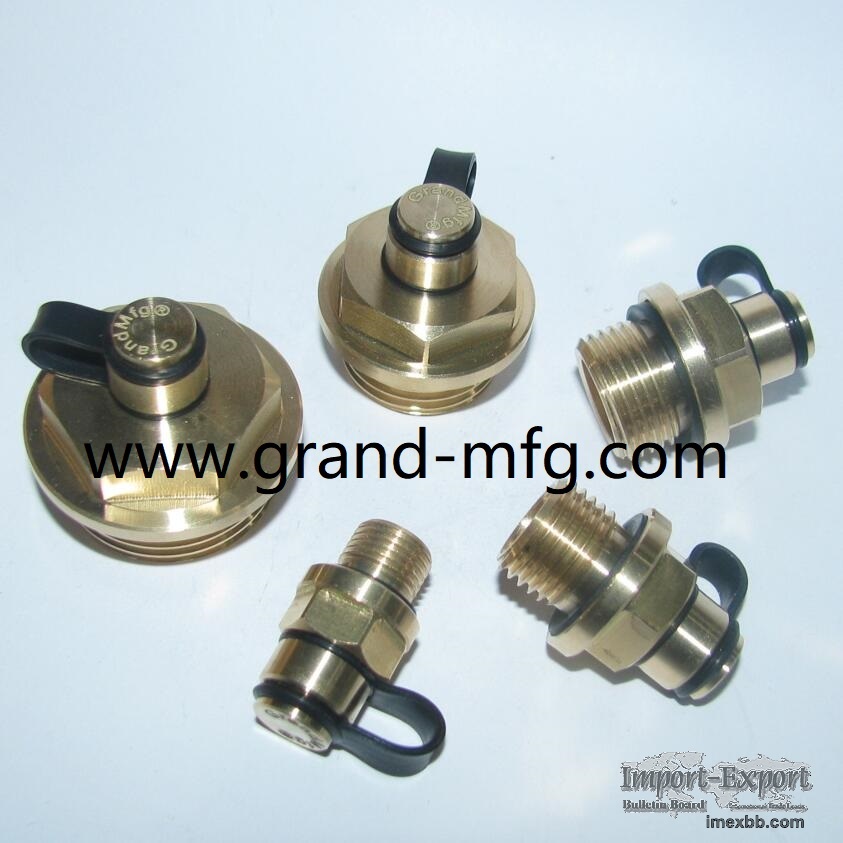

Gear unit Gearbox speed reducer gear motor Breather air vent valve plug BSP

Grandmfg® Breather Air Vents Valve, Air Vent Plugs, Breather Vent Plugs,
Breather Plugs, Breather drain plugs, vent plugs, Air released plugs,Breather
cap,Enhanced Brass Breather Vent,Hydraulic Breather Cap

Material: Brass, aluminum and steel
Finish:  Natural and Nickel Plated

Thread Type:  BSP,Metric,NPT and Any Size OEM are welcome.
Metric thread: M8 to M60
NPT thread: NPT1/8” to NPT1”
BSP thread: G1/8” to G1”

Precision control pressure type:
Working Pressure range:  0.01 MPa to 0.03MPa(0.1bar to 0.3bar).
Working Temperature Range:  -30 Celsius Degree to 180 Celsius Degree.
Function: Allow Sealed Pressure Systems to Vent Off Excess Pressure as Heat in
System Builds up,Protective cap prevents water or dirt from entering.Keep the
system working in a certain low and good pressure improving the transmission
efficiency.


Brass/SS304 filter type: 40-60 Micron brass filter or Stainless steel 304
filter.
Function: Allow Sealed Pressure Systems to Vent Off Excess Pressure as Heat in
System Builds up, Air Pressure is Allowed Back into System as System
Cools,Protective cap prevents water or dirt from entering.

Usage: Pump, Single Acting cylinders or valves, Crank Cases, Storage
Tanks,Thin-wall container, Radiator, Hydraulic tanks,hydraulic
reservoir,Hydraulic Cylinders, receivers,manifolds,Gearboxes, Speed Reducer,
Compressor and Power Transmission.

Minimum Order: 200 pieces
