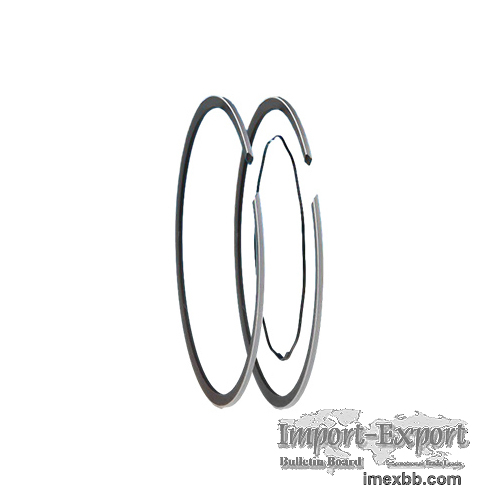

General Purpose Engine Piston Ring

PRODUCT CODE CYLINDER DIAMETER(MM) RING HEIGHT (MM)
1ST 2ND OIL
1 03501 35.70 1.00 1.00 1.90
2 03503 35.00 1.00 1.00 2.00
3 03507 35.00 1.00 1.00 2.00
4 03802 38.10 1.00 1.00 2.00
5 03906 39.00 1.00 1.00 2.00
6 04106 41.00 0.80 0.80 2.00
7 04109 41.80 0.80 1.00 1.50
8 04601 46.00 1.50 1.50 2.50
9 04809 48.60 1.00 1.00 2.00
Dongya purchases a series of steel ring materials from well-known international
companies, which can meet the design requirements of various structures and
surface treatment piston ring. At the same time, in accordance with the ISO-
6621-3:2000 standard, according to customer needs and engine performance, we
independently develop various cast iron ring materials.
