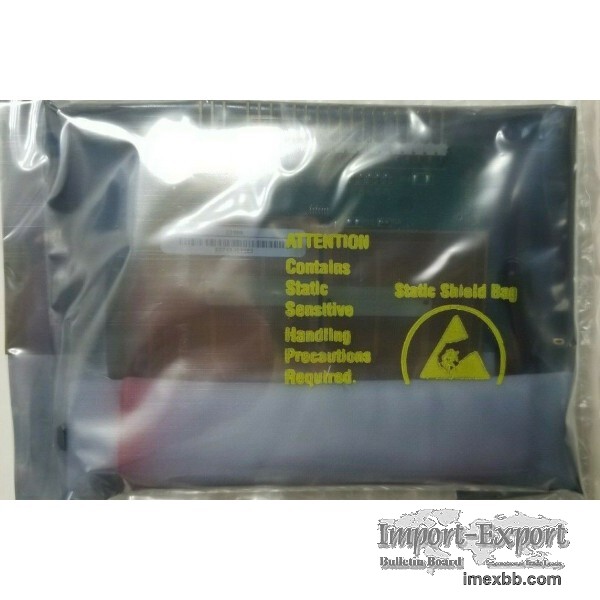

Genuine Dimatix FujiFilm Spectra Sapphire QS-256/10 Printhead PN 22100

The Sapphire QS-256/10 AAA printhead features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing. It is designed to eject adjustable 10 to 30 picoliter drops in binary jetting mode or a 10-picoliter fundamental drop in grayscale mode. This is done at a nominal 8-meter per second drop velocity when jetting fluids in the 10 to 14 centipoise range.

Dimatix’ breakthrough VersaDrop™ jetting technology is featured within the Sapphire QS-256/10 AAA printhead. It allows unparalleled flexible modes of operation including adjustable binary drop size and grayscale capability at unprecedented throughput rates.

The rugged, field proven material set selected for the Sapphire QS-256/10 AAA printhead deliver long service life and consistent output.
Using tailored waveforms and a durable, inert silicon nozzle plate to provide best-in-class drop placement accuracy, a wide range of ink formulations are accommodated including UV-curable, organic solvent and aqueous-based inks and associated maintenance fluids.

Precision registration points have been added to the printhead to provide absolute reference to the nozzles to within a few microns. This makes it possible to nest printheads together for high packing densities.
Shared physical features and identical interfaces as other Q-Class products allow the Sapphire QS-256/10 AAA to be intermingled with the same or complementary printhead models to create a multitude of single and multiple-color configurations.

Each 256-channel Sapphire printhead is offered with an integral temperature sensor and a configurable, dual-ported fluid interface comprised of O-ring face mounts or barbed fittings to facilitate fast flushing or recirculation of inks.
Printhead operational temperature can be up to 90° C. The driver chip is double buffered to support the Sapphire QS-256/10 AAA high-speed jetting capability

Specifications
- Technology: VersaDrop™ jetting
- Print Width: 64.77mm (2.55")
- Nominal Drop Size: 10 picoliter
- Adj. Range for Droplet Size: 10 to 30 picoliter
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 254 microns
- Firing Frequency: 50 kHz (16 kHz for 30 picoliter droplets)
- Operating Temperature: up to 90°C
- Ink Compatibility: UV curable, Organic solvents, and aqueous inks


Printer compatibility
Durst Rho P10 160
Durst Rho 1012
Durst Rho 500R
Durst Rho 750 HS
Durst Rho 750 Presto
Durst Rho P10 200
Durst Rho P10 250
Durst Rho P10 320R
Fujifilm DMP-3000
Fujifilm DMP-5000
Inktec Jetrix 2513FRQ
Inktec Jetrix 3015FQ
Inktec Jetrix 2513FQ
Polytype VIRTU Quantum 25
Polytype VIRTU Quantum 35
WP Digital RS25
WP Digital RS35

Minimum Order: 1 pieces
