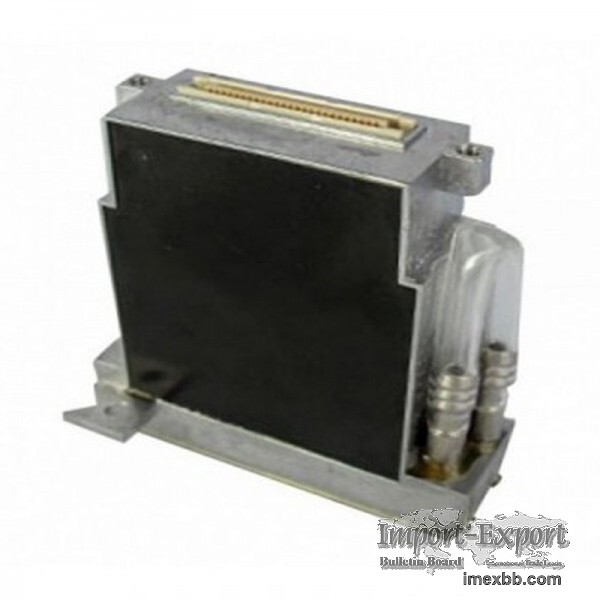

Genuine Konica Minolta 512/42pl (KM512LN) Printhead

High resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively.
The type M and S can be driven in 4 level grey-scale mode for reproducing high quality images with smoother tones.

Compatible with Solvent, UV, Oil ...

Due to its specially designed internal structure, the KM512 series boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers.

Inks which have high viscosity at room temperature,such as UV ink, can be heated up to 55 degrees Celsius with the H type's internal heater.

Enabling Comapct Design of Head Mount System
This series is specially designed to have a "wing" structure so that users can precisely align the print heads without difficulty. This feature allows easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangability of different type heads on the same mount system.


Konica Minolta 512 head suitable printer

HP DesignJet 9000s/8000s/DesignJet 10000s

Myjet WB320 / LB320 / LE320

Seiko ColorPainter 64S / ColorPainter 100S

Allwin C8 / C12 / H8

Liyu Apollo PTP-KL / Maxima PZ-KM

DGI SaturnJet ST-1806

Flora HJ 3200Turbo

Minimum Order: 1 pieces
