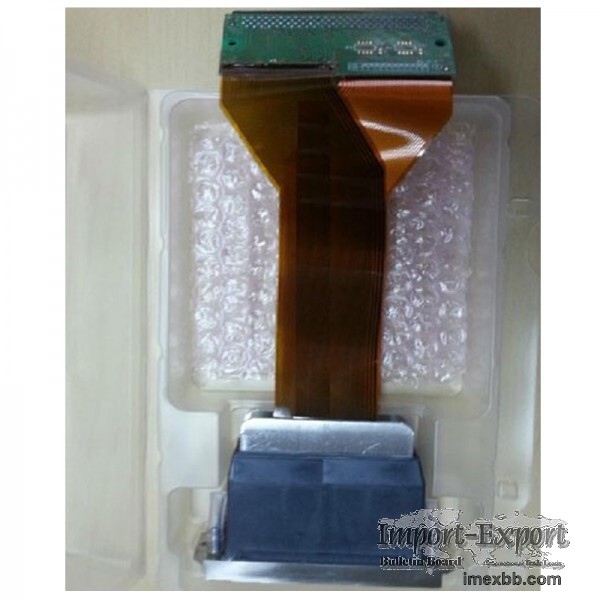

Genuine Mimaki SWJ 320 S4 Printhead

Mimaki SWJ 320 S4 Printhead
This GEN5 (MH5420/5440) Assy Packaging is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.

Product Specifications

- Dimensions: 89 x 25 x 69 mm (excluding cables)

- Head materials: SST, Nickel alloy and Epoxy Adhesive

- Nozzle plate surface: Coated SST

- Number of nozzles: 4 x 320 nozzles

- Nozzle spacing: 0.1693 mm

- Nozzle density: up to 600 npi

- Piezo yype: D33 Stacked PZT

- Temperature control: Integrated Heater and Thermistor

- Operator temperature range: Up to 80° C

- Native drop volume: 7 pl

- Drop volume range: 7 - 35 pl

- Drop velocity: 7 m/s

- Jetting frequency: Up to 60 kHZ

- Life: 100 billion actuations per nozzle

Minimum Order: 1 pieces

Genuine Mimaki SWJ 320 S4 Printhead
