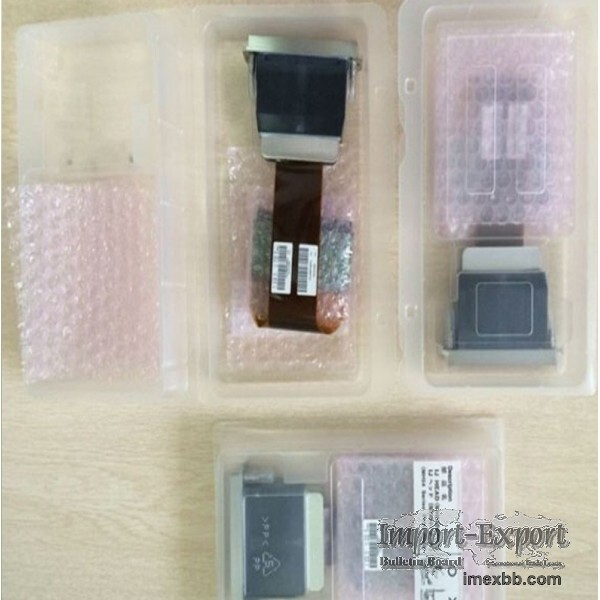

Genuine Printhead Ricoh Gen5 7PL 35PL

The Total Length of this printhead is 248mm including cables. (Manual measurement, there may be 1cm error of physical)

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths (connector included): 140mm or 390mm.

Product Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)

Head materials: SST, Nickel alloy and Epoxy Adhesive

Nozzle plate surface: Coated SST

Number of nozzles: 4 x 320 nozzles

Nozzle spacing: 0.1693 mm

Nozzle density: up to 600 npi

Piezo type: D33 Stacked PZT

A-Starjet : 5.0, 5.0 L

Agfa : Jeti Mira MG2716 S/HS, Jeti Mira MG2732 S/HS, Jeti Tauro H2500, Jeti Titan HS, Jeti Titan S

Akad : NovaJet UV M6

AmicaSystems : FG2512

AOjet : APro 250F

CET Color : Q5-1000, Q5-1000h, Q5-250, Q5-250h, Q5-500, Q5-500h

Docan : 1212 UV. FR3210. FRT3116. M10. M6. M8

Flora : LJ180G, LJ320G, PP 3220UV, PP1612UV-G, PP2512UV-G

Handtop : HT1600UV HR4, HT1610UV FR4, HT2500UV HR8, HT2512UV-D FR8, HT3116UV FR8, HT3200UV HG12, HT3200UV HR8

Indask : F1212 UV, F2030 UV, F2518 UV, FR2510 UV, FRT3215 UV, FRT3225

JHF Vista : R3300

LavaPrint : 4896-HRC, 78118-HRC

M&R : M-Link X

Mantis : MTS-UV1513RI

Mehta : POWER 4S, POWER PRO 3200

Metha : Rasterjet RJ2030, Rasterjet RJ2512, Rasterjet RJ2512H

Mtutech : MT-RH1510R

Rose Maxcan : RGP-MC48-G5, RGP-MC45-G5

Sprinter : Turecolor TC-FG2030, Turecolor TC-F2030, Turecolor TC-FR2512, Turecolor TC-F2512, Turecolor TC-F1212

TitanJet : 3302-G5N

TwinJet : MC - F2030G, MC - F2513G

Vivex : CS 3300

Temperature control: Integrated Heater and Thermistor

Operator temperature range: Up to 80° C

Native drop volume: 7 pl

Drop volume range: 7 - 35 pl

Drop velocity: 7 m/s

Jetting frequency: Up to 60 kHZ

Ink compatibility: UV Inks

Life: 100 billion actuations per nozzle

Genuine New Ricoh Gen5 / 7PL-35PL Printhead

Ricoh Gen5 / 7PL-35PL printhead (Two Color, Short Cable)

Printer Compatibility: Handtop, Docan Flatbed UV Printers

Manufacturer: Original

Minimum Order: 1 pieces
