Genuine Printhead Seiko Colorpainter 64s/100s

Genuine Printhead Seiko Colorpainter 64s/100s

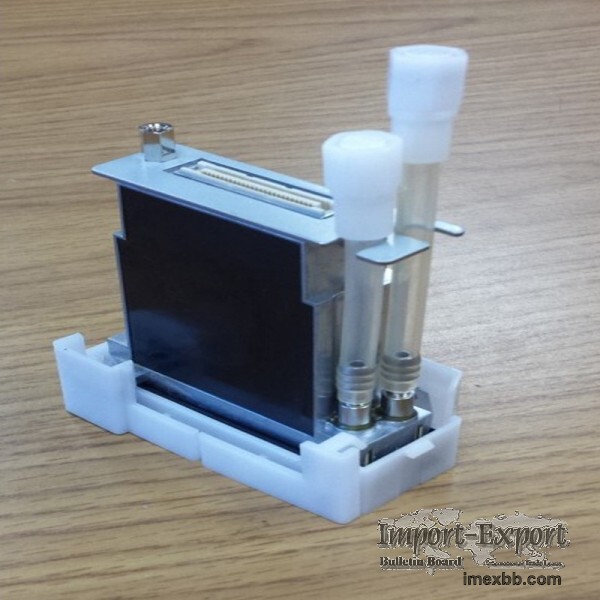

This is the Konica Minolta KM512 MN print head, it is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.

The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX. This is Konica original print head and it includes the Head ID and the necessary waveform information.

Specifications:

Compati , ble manufacturers: seiko

Nozzle Number: 512

Remark: Original

Sizes: 110*100*60(mm3)

Suitable for printers:Seiko ColorPainter 100s,Seiko ColorPainter 64s

Volume weight: 0.15

Weight: 0.3lb (0.15kg)

The KM512 MN 14PL is not suitable for the varnish or white ink on the Agfa :Anapurna Mv and :Anapurna Mw printers. Please order KM512LN (PRH-KON-005) if you need print heads for varnish (Mv) of white ink (Mw).

Minimum Order: 1 pieces
