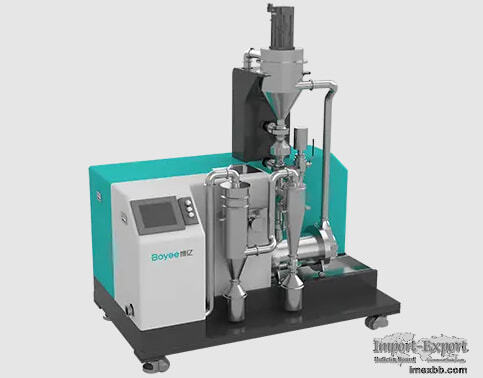

GFM-5L Dry Bead Mill

Principles of Mechanical Grinding

The ceramic rotor spins at high speed to drive the zirconia beads into motion.
Through intense collisions between the zirconia beads and the material, large
particles are broken down. Subsequently, the friction between the zirconia
beads and the material, as well as between the material and the
chamber, further refines the material to the target particle size.

Principles of Precise Grading

The classier utilizes specific airflow and mechanical structures to screen
materials based on particle size and density differences, ensuring qualified
particles enter the collection stage and achieving precise particle size
control.

Principle of Efficient Collection

The combination of a cyclone collector and dust collector is employed, where
the cyclone collector recovers bulk material through centrifugal force, while
the dust collector captures fine powder via filtration, achieving waste-free
material recovery in Dry Bead Mill applications.

Equipment advantage
01 Dry Grinding Mill provides more uniform grinding force, ensuring stable fine
grinding effect.
02 Real-time finess control, with an extremely narrow particle size
distribution
03 Enhanced by fluidized bed technology achieving higher classification
efficiency
04 Low-cost · Submicron · Zero-waste
05 Wear-resistant · Temperature-stable · Controllable

Integrated Grinding and Classification

More uniform grinding force stable fine grinding effect
The Nano Grinding or Nano Milling process utilizes a horizontal layout,
enabling the grinding media to fully contact the material under the dual action
of gravity and the stirring shaft.

Real-time finess control, with an extremely narrow particle size distribution
The classifier wheel operates synchronously with the grinding process. Based on
centrifugal force, oversized particles are separated in real time and flung
back into the grinding chamber for secondary grinding, while qualified
particles pass through the classification gap into the collection system.

Enhanced by fluidized bed technology achieving higher classification effciency
Innovatively employing TSD classification technology, this system leverages
fluidized bed air distribution to minimize pressure drop during the
classification process, preventing material accumulation and blockage within
the classification chamber.

Low-cost · Submicron · Zero-waste

Combining Affordability with Precision
Breaking through the high-energy consumption limitations of traditional air-jet
mills, achieving low-cost mass production of submicron-level grinding

Zero-loss Design
Highly wear-resistant components + residue-free design.

Intelligent Control
Fully automatic adjustment of rotational speed, airflow and classifier
parameters.
Wear-resistant · Temperature-stable · Controllable

Ceramic Pin-type Structure
Enhance the wear resistance of the rotor.

Silicon Carbide Cylinder
The outer layer circulates cooling water to control grinding temperature,
ensuring the grinding temperature range.

Power Classifier
The particle size range of the material can be controlled.

Equipment advantage
01 Design for low viscosity, super fine grinding and decentralized
02 Use centrifugal force to realize the separation of grinding media
03 Dual -power design, make materials grinding and Separating independently
04 Design for low viscosity, super fine grinding and decentralized
05 Use centrifugal force to realize the separation of grinding media
06 Dual -power design, make materials grinding and Separating independently
