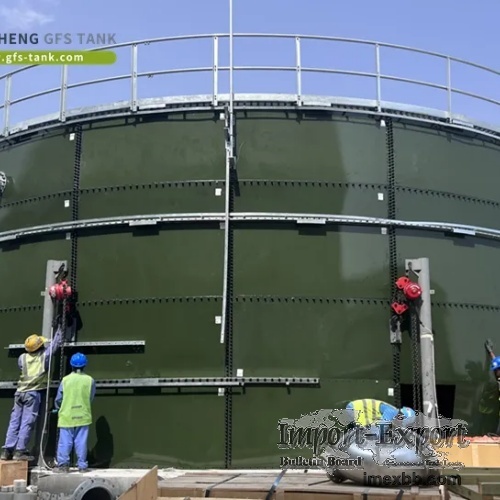

Glass Fused to Steel Sewage Collection Tank in Municipal Wastewater Treatme

GFS bolted tank is made of glass fused to steel plate, special sealing
material, self-locking screw and other materials. The thickness of enamel steel
plate can reach to 20 mm, the most used steel plate thickness is 3~10 mm, steel
plate has surface oil, contain rust, contain oxide skin, after shot blasting,
sand and other pretreatment process, the steel plate surface will be clean.
After 900 ºChigh temperature second enamelingl in electric furnace ,0.3 mm
enamel coating is applied on both sides of steel plate. strong binding force
between enamel coating and steel plate. Enamel coating can not only prevent
tank corrosion, but also has the function of strong acid and alkali resistance.
And has extremely strong wear resistance.
Advantages of Glass Fused to Steel Sewage Collection Tank
Compared with concrete or carbon steel welded tanks, the advantages of GFS
Steel bolted tanks are listed below:
Low Cost
The installation, disassembly, migration, and resettlement of GFS bolted Tanks
are convenient and fast, and do not require a large amount of labor and large
installation equipment. The quality is stable and the corrosion resistance is
excellent, so the maintenance cost is very low. Carbon steel welded tanks and
concrete tanks are installed on-site and usually involve sealing and
waterproofing, long installation intervals, and the installation process are
easily delayed due to bad weather (such as rain or wind), resulting in high
installation costs. In some cities, there may be restrictions on the use of
sealants, resulting in delays or high installation costs. GFS tanks are more
convenient and environmentally friendly without on-site finishing.
