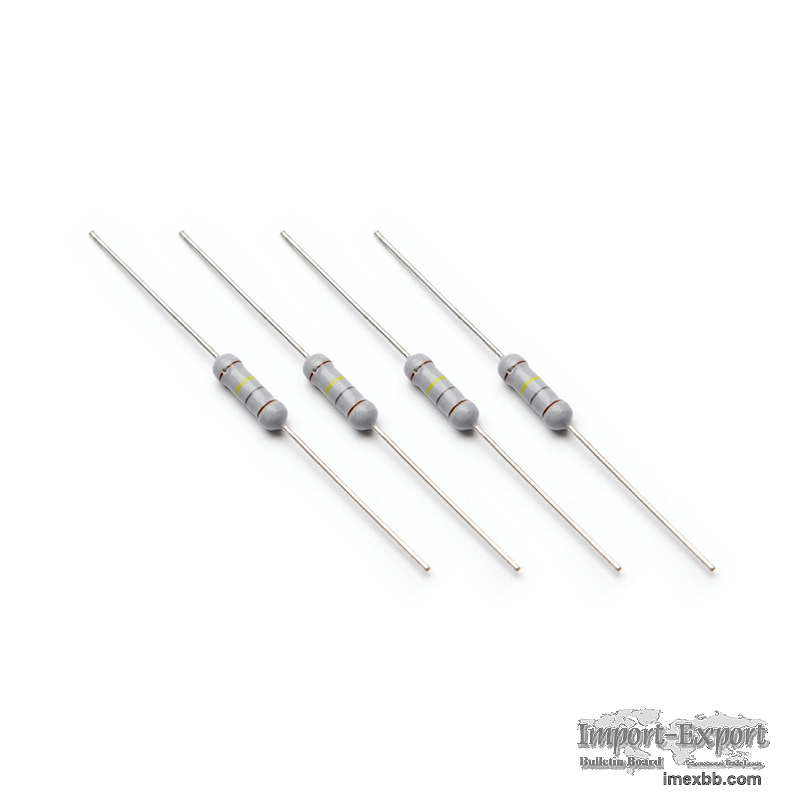

Glass Glaze Resistor

1/4W 1/2W 1W 2W 3W 4W 5W
Glass glaze resistors are made of metal oxides such as silver, rhodium,
ruthenium and glass glaze adhesive mixed into a slurry, coated on a ceramic
frame, and sintered at high temperature. At present, resistors are mostly made
of ruthenium oxide and glass glaze adhesive. Metal glass glaze resistors are
available in ordinary and precision types. This type of resistor is resistant
to high temperature, has good moisture resistance, good stability, low noise,
small temperature coefficient, and a large resistance range.

① Moisture resistance, temperature resistance, and good stability.
② Wide resistance range, ranging from 4.7Ω to 200MΩ.
③ The rated power is generally 1/8W, 1/4W, 1 I2W, 1W, 2W, and the high-power
type is 500W.
④ Low noise and good high-frequency characteristics.
⑤ Small size and light weight.
