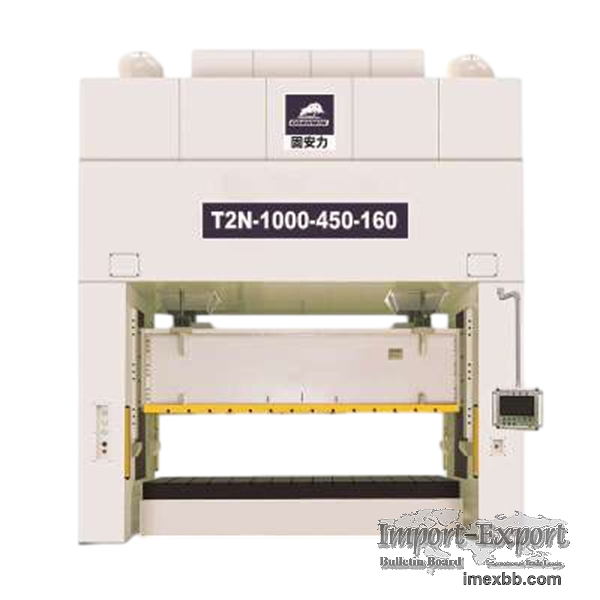

GOANWIN T2N Straight-Side Double Crank Press for Car Bumper, Car Fender

Applications
Car bumper, car fender, car rear crossbeam bracket

Description
The GOANWIN T2N Series Closed Double-Point High-Performance Press is
designed for large-scale, high-precision stamping applications. Featuring a
robust steel-plate welded structure with a split-closed frame design, the
T2N series offers exceptional rigidity, minimal deformation, and superior
resistance to eccentric loads.
With an advanced crankshaft horizontal structure, hydraulic overload
protection, and a dry pneumatic friction clutch, this press provides
reliable, efficient, and safe operation. The eight-sided long guide rail
system ensures consistent accuracy and stability, making it ideal for
progressive stamping dies.
A user-friendly PLC-based control system with a 10-inch color touchscreen
delivers centralized control and operational precision. Equipped with an
automatic thin oil lubrication system, the T2N series ensures optimal
performance and extended service life.
This machine is a perfect choice for manufacturing car bumpers, fenders,
rear crossbeam brackets, and other heavy-duty automotive components, as
well as industrial applications requiring high performance and durability.

Features
1.High-Strength Closed Structure
Frame comprises a split design (crossbeam, uprights, base) secured by four
pre-tensioned bolts for superior rigidity and reduced deformation.
Welded steel structure ensures durability and resistance to high-impact
loads.


2.Enhanced Anti-Eccentric Load Capacity
Horizontal crankshaft design increases the distance between connecting
rods, improving resistance to eccentric loads and expanding the working
area.


3.Precision & Stability
Equipped with a four-corner, eight-sided long guide rail system, ensuring
smooth and precise slider movement.
Optimized transmission structure minimizes vibration and improves stamping
accuracy.

4.Advanced Safety Systems
Hydraulic overload protection device ensures automatic emergency stops to
safeguard both the press and tooling.
Dry pneumatic friction clutch delivers low noise, large clutch torque, and
reliable braking performance.


5.Die Height Adjustment
Powered die height adjustment with an electronic readout for precise and
easy setup.

6.Smart PLC Control
Centralized PLC-based control with a 10-inch color touchscreen, supporting
multi-mode operations: emergency stop, inching, and continuous.
Integrated double-valve control for precise clutch-brake coordination,
enhancing safety and efficiency.


7.Versatile Design Options
Optional accessories include air cushions, movable worktables, and quick
die change systems to meet diverse production requirements.


Specifications
- Tonnage: 400–1200 tons.
- Frame Type: Steel-plate welded, split closed structure
- Frame Structure: H-type frame with crossbeam, uprights, and base secured
by tensile screws
- Clutch/Brake System: Pneumatic dry friction clutch-brake combination
- Drive System: Horizontal crankshaft, single gear reduction drive
- Slide Guiding: Four-corner, eight-sided long rectangular guides
- Overload Protection: Hydraulic overload protection device
- Die Height Adjustment: Powered adjustment with electronic readout
- Lubrication System: Thin oil forced lubrication with fault alarm
- Control System: PLC-based control with 10-inch color touchscreen
- Operational Modes: Emergency stop, inching, continuous operation
- Frame Deflection: 1/8,000 mm for enhanced accuracy and tooling life
- Accuracy Standards: Built to JIS Class 1 standards


Sales Service
- Guaranty Period: One year (main parts; wearing parts excluded)
- Parts Delivery: Spare parts dispatched within three working days via TNT.
- Technical Support: Assistance via email or video; overseas technician
support available at additional cost.
- Installation & Commissioning: On-site installation and commissioning
services available; buyer covers technician costs.

Standard Accessories
- Hydraulic overload protector.
- Electric lubrication device.
- Digital die height indicator (unit: 0.1MM).
- Balance device.
- Rotary cam switches.
- Crank angle indicator
- Circulating centralized lubricating oil installations.
- Electromagnetic stroke counter.
- Second fall protection device
- PLC controller.
- Air blowing material joints.
- Air source receptacle.
- T-Mobile station.
- Independent electrical control box.
- Maintenance toolbox
- Inverter.
- Anti vibration device.
- Power plug.

Optional Accessories
- Die cushion.
- Slide knockout device.
- Die room light.
- Main motor reversing device.
- 3-digit counter cutting.
- Safety light sensor.
- Security and safety latch stopper.
- Presetting counter(6 digits).
- Load detection device.
- Misfeed detection device.
- Base screws and base plate.
- Security and safety ladder rack.
- Quick die change device.

The GOANWIN T2N Straight-Side Double Crank Press is engineered to meet the
toughest requirements of precision manufacturing. Its combination of high
rigidity, advanced safety systems, and customizable options ensures
reliability and efficiency in high-demand applications. Whether you're in
automotive, electronics, or heavy industry, the T2N series offers
exceptional performance and durability.
Contact us today to discuss how the T2N can elevate your production
capabilities!

Minimum Order: 1 pieces
