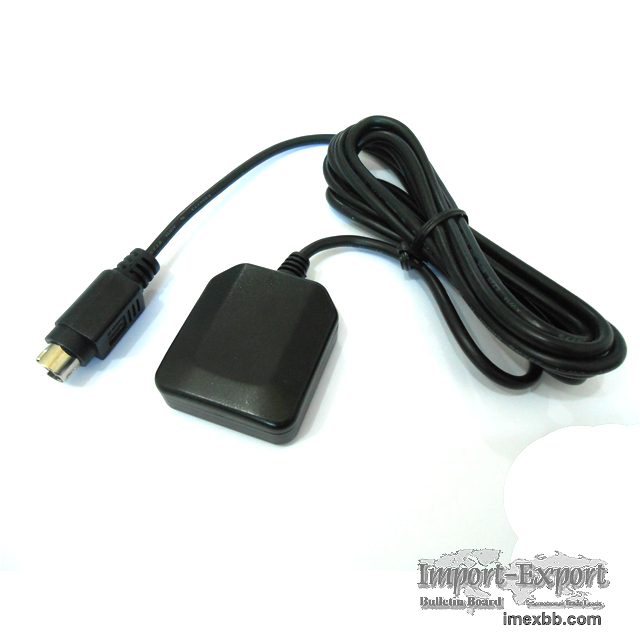

GPS mouse Ct-GM451 RS232 GPS Receiver PS2 Connector

Ct-GM451 U8 is a GPS Mouse receiver build-in well-known Ublox 8 GPS
chipset.

Ct-GM451 U8 provides customer high position, velocity and time accuracy
performances as
well as high sensitivity and tracking capabilities. Customers benefit from
the strength
of both companies.

Thanks to the low power consumption technology, the Ct-GM451 U8 is ideal
for many
portable applications such as PDA, Tablet PC, smart phone, automotive etc.


Features
- 72 channel Ublox M8 positioning engine.
- Ultra high sensitivity to -167 dBm.
- GPS L1C/A, SBAS L1C/A, QZSS L1C/A and Galileo E1B/support.
- Supports GLONASS and is ready for Galileo.
- Supports UART, USB and RS232 interface.
- Up to 10 Hz update rate.
- LED indicate location fix.
- Ultra low power consumption.<10mW required for TricklePower™ mode
- Ultra miniature 29 x 29 mm dimension
- Operating temperature range: -40 to 85°C
- RoHS compliant (lead-free)
- Water proof (IPX6)
- Device Size:42.0 x37.0 x 15.0 mm

Applications
- Automotive
- Personal/Portable Navigation (PDA)
- Geographic Surveying
- Sports and Recreation
- Marine Navigation
- Fleet Management
