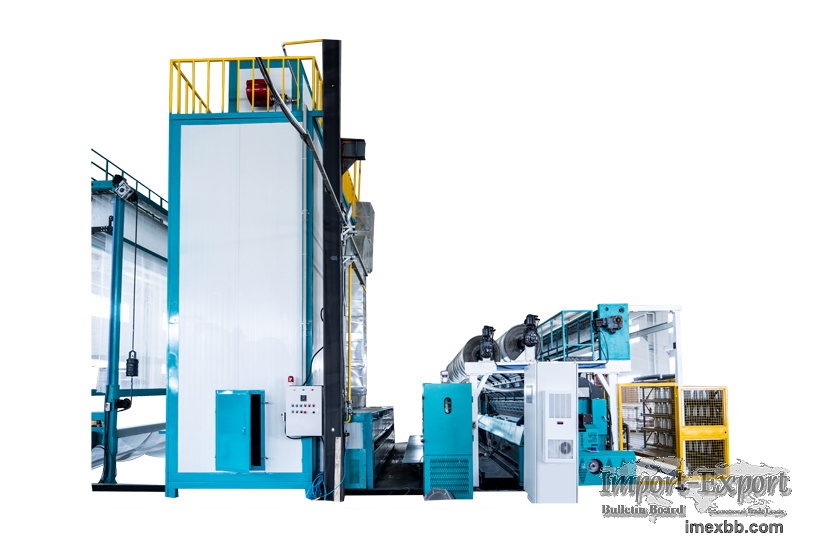

GRID WARP KNITTING MACHINE

The machine has one set of warp lining systems and one set of full-width
weft insertion system, which can be lined with warp and weft in parallel at
the same time, bound together by binding coils, glued online, dried and
solidified, cooled cloth storage, fixed-width and framing, and constant
tension winding.

RUN FENG YUAN BIAXIAL WARP KNITTING MACHINE FOR SALE

RSM3/1 186/215/247 Inch E5/E6/E8/E9 Grids Warp Knitting Machine
RSM3/1 186/215/247 Inch E5/E6/E8/E9

Application: Warp knitting net fabric

GRID WARP KNITTING MACHINE SPECIFICATION

RSM3/1 (186"/215"/247") E5/E6/E8/E9 Grid Warp Knitting Machine
Gauge E5, E6, E9, E12
Working Width 186", 215", 247"
Bar Number 2 ground bars, 1 warp insertion bar
Speed 20-1200rpm (Depends On Pattern and Material)
Shogging Manner Pattern Disc
Let-off Manner EBA System
Take-up System EWA System
Weft insertion method 1set of weft laying system
Curing method Thermal circulating air constant temperature oven
Gluing method Rolling gluing

If you need any kinds of multi axial warp knitting machine, please contact
us, as a professional knitting machine factory, Runyuan is willing to offer
you high quality products.
