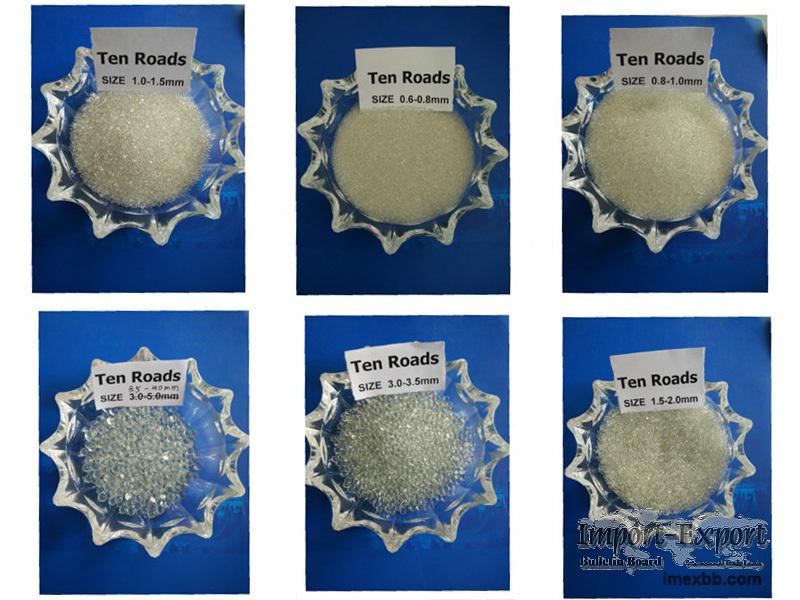

Grinding Glass Beads

With the advantages of smooth surface, even size, high hardness, wearable and
stable, grinding glass beads are widely used as disperser, grinding media and
filler materials in paint, ink and chemical industry.

Grinding Glass Beads
With the advantages of smooth surface, even size, high hardness, wearable and
stable, grinding glass beads are widely used as disperser, grinding media and
filler materials in paint, ink and chemical industry.

Get Bulk Glass Beads Products Price List 
Specification of Grinding Glass Beads
No. diameter(mm) corresponding sieve size
1 0.8-1.0 20-18
2 1.0-1.5 18-14
3 1.5-2.0 14-12
4 2.0-2.5 12-8
5 2.5-3.0 8-7
6 3.0-4.0 7-6
7 4.0-5.0 6-4
8 5.0-6.0 4-3

Technical Data of Glass Beads For Grinding
A: Appearance: Clean and transparent, no visible bubbles and impurity.
B: Specific gravity:2.4-2.6g/cm3
C: Hardness:6-7
D: Compressive strength:＞1200N

Advantage of Grinding Glass Beads
1. Glass beads are both soft and hard - produced by high-quality materials,
that is, have a certain mechanical strength, sio2 content is greater than or
equal to 68%, hardness can reach 6-7 Mohs, and has sufficient elasticity, can
be used repeatedly several times, It is not easy to be broken, and the effect
of the sprayed device is the same, which is more than three times longer than
the service life of ordinary glass beads.
2. Uniformity is good—the rounding rate is greater than or equal to 80%, and
the particle size is uniform. After spraying, the brightness coefficient of the
blasting device is kept uniform, and it is difficult to leave a watermark.
3. Irreplaceable - shot blasting glass beads as an abrasive material has the
following advantages over any other abrasive material: in addition to metal
abrasive materials, longer than any other medium, made of non-alkaline soda-
lime glass material, with Good chemical stability, will not pollute the
processed metal, can accelerate cleaning, while maintaining the processing
accuracy of the original object
4. Smooth and no impurities - the appearance of spherical particles, no
impurities; smooth surface, with a good finish, reaching international and
domestic standards.

Instructions for Using Grinding Glass Beads
1. According to the viscosity, hardness, dispersion particle size and grinding
requirements of the grinding materials, select the glass beads of the
corresponding varieties, specifications, and quantities.
2. Clean the glass beads and the inner wall of the grinding barrel before
grinding.
3. Put the material to be ground into the grinding barrel and then put the
appropriate amount of glass beads. After the grinder is running, the glass
beads are gradually added. The filling amount is generally 70%-85% of the
volume of the grinding machine cylinder.
4. Do not let the glass beads run for a long time under the condition that the
grinder is out of material. Otherwise, the glass beads are easily crushed in a
high speed grinding machine.
5. After the grinding machine is running for a period of time, it is necessary
to supplement the glass beads in an appropriate amount to ensure the quality
and efficiency of the grinding.
