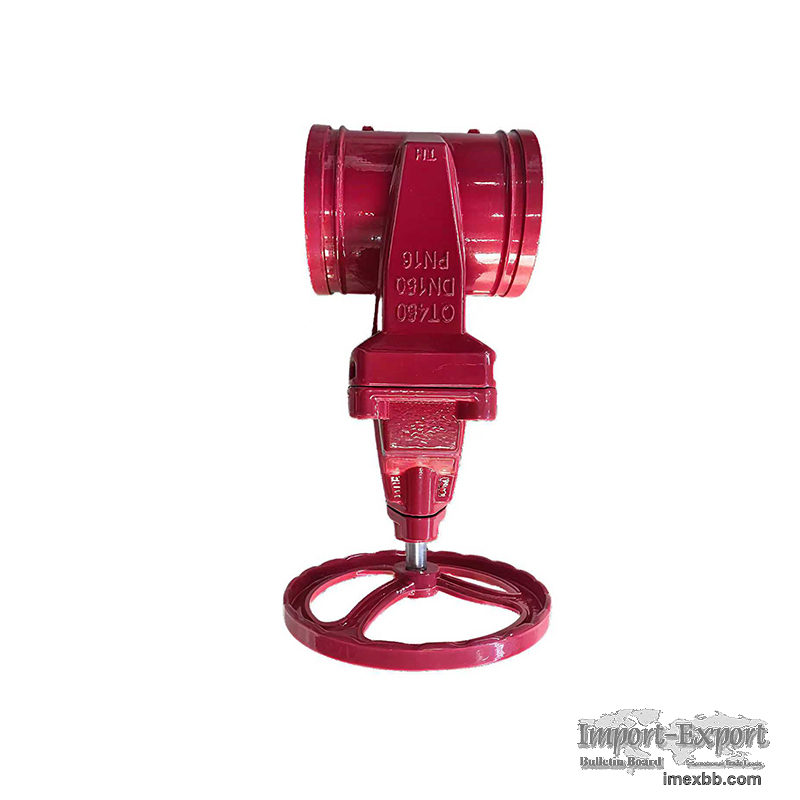

Grooved Non-rising Stem Soft Seal Signal Gate Valve

Size range: 2"-12" (DN50-DN300)
Design standard: ISO 6182
Working pressure: PN10, PN16, PN25
This Grooved Non-rising Stem Soft Seal Signal Gate Valve adds a signal sensing
function based on ordinary valves, which is used to transmit the status signal
when the valve is fully open. The valve is mainly used to connect and cut off
the medium in the pipeline. The valve stem rotates, and its transmission thread
is inside the body cavity, which can save installation space. The entire gate
is coated with rubber. The elastic deformation of the rubber enables the valve
to fit tightly when closed, achieving excellent sealing effects and thus zero
leakage. There are no gate grooves in the valve cavity, so no debris will be
retained, resulting in extremely low fluid resistance and lighter switching
operations.
