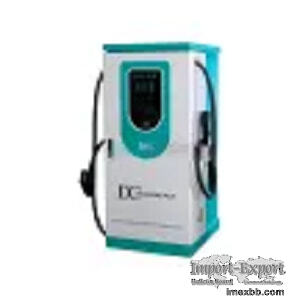

Ground Mounted DC Charger

Ruihua, the preferred energy supplier for EV charging solutions, proudly
introduces the Ground Mounted DC Charger—a testament to our commitment to
innovation, sustainability, and driving the future of electric mobility. As a
trusted electric vehicle charging pile manufacturer, we have meticulously
designed this charger to meet the diverse needs of modern electric
transportation.

Ground Mounted Dc Chargers are commonly used in public charging networks,
especially along highways or other high-traffic areas where fast charging is
essential for long-distance travel. They are designed for use with electric
vehicles that have the capability to accept high-power DC charging, such as
many modern electric cars and buses.

Experience the pinnacle of charging efficiency with our Ground Mounted DC
Charger. As a dual EV charger, it caters to multiple vehicles simultaneously,
ensuring a seamless and convenient charging experience for EV users. Equipped
with advanced technology, this Ground Mounted DC Charger is set to
revolutionize the way we power electric vehicles.

It's worth noting that not all electric vehicles are capable of accepting high-
power DC charging, so it's important to check your vehicle's specifications
before using a 240 kW DC charging station. and Ground Mounted Dc Charger can
consume 40 kWh of electricity in ten minutes at full load.

The DC fast charging speed of 120 kilowatts is twice that of 60 kilowatts, and
during the charging process, the former charges twice as much electricity per
unit time as the latter.

DC fast charging pile, with powers of 30kw, 60kw, 120kw, 160kw, etc., is
suitable for charging new energy electric vehicles with fast charging
interfaces. The charging power is large and the speed is fast, so it is
generally installed in new energy charging stations, shopping malls, gas
stations, and other places, suitable for short-term stay fast charging users,
convenient and fast.

Ground Mounted DC Charger Details
Multi-standard: CCS1, CCS2, CHAdeMO
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Ground Mounted DC Charger Specification
Input Connection 3-Phase : 3P+N+PE
Input Voltage 400V/AC ±15%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc - 1000Vdc
Max. Output Current 200A（ 250A optional）
Rated Power 120kW - 240kW
User Interface & Control
LCD Display 7" Color Touch Screen
LED Indicator Green/Yellow/Red
Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )
Number of Charging Interface 2
Energy Measuring Embedded meter, with 1% accuracy
Communication
Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )
Protection
Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection,
Short Circuit Protec-
tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,
Surge Protection
Environmental
Operating Temperature -30℃—+55℃
Storage Temperature -40℃—+75℃
Operating Humidity Max. 90% RH, Non-Condensing
Operating Altitude ≤ 2000m
IP, IK Level IP65, IK10
Cooling Method Independent air duct
Mechanical
Product Dimension 1780*800*950 mm (H*W*D)
Charging Cable Length 5m
Weight 60kw: 390kg; 120kw: 420kg;
Mounting Free Standing
Certifications
Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
Safety CE
EMC Class B
