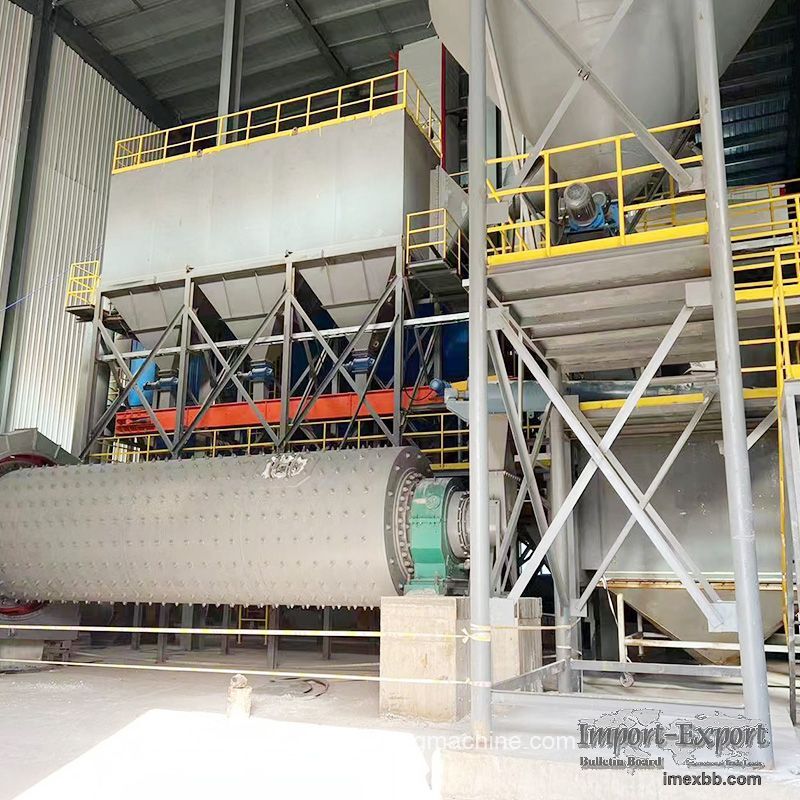

Gypsum Powder Production Line

The gypsum powder production line adopts mature milling process, which is
divided into 8 systems, namely crushing, grinding part, calcining, cooling,
homogenizing aging, dust removal and environmental protection, waste heat
energy saving and reuse, and automatic central control.
1. Crushing system
It is composed of a feeding hopper, a variable frequency vibrating feeder, a
jaw crusher, a hammer crusher, a chain elevator, a block silo, and a dust
removal system. The raw materials are fed into the receiving hopper by a
forklift, and then fed into the jaw crusher hammer crusher through variable
frequency vibration for crushing. The gypsum ore is crushed from large
particles to the particle size required for grinding. After crushing, it enters
the elevator through a chute and is transported to the raw material warehouse
through the elevator. The warehouse is equipped with a material level and
vibration feeding system. Control the start and stop of the entire crushing
system by sending signals from the level gauge on the silo.
