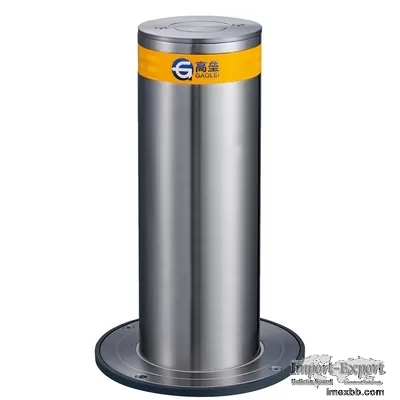

H 1.1m Automatic Rising Bollards 110 KG 4S Rise Road Safety Bollards

PRODUCT DESCRIPTION
Automatic hydraulic road bollards with Electronic remote control

Installation steps
1. Cut the ground surface and excavate,the foundation base need around 800mm
and 1130mm.
2. Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
3. Embed the bollard,make sure the head of the bottom is at the same level
with the horizontal ground.
4. Install the wiring tube and drainage pipe.Make sure each wire should be
secured by waterproof tape to avoid water vapor permeated into the wire.
5. Power on to test. Make sure the bollards can work well.Then cover the head
of the bollard to avoid the concrete dirty it.All the drainage pipe hole need
to be covered by structural adhesive.
6. Pour the concrete into the foundation base.Be careful to avoid the movement
of bollard.
7. Tidy up the bollard head and ground surface, complete installation
containers and bottles in all shapes.

Brand Name
Gaolei
Product Type
stainless steel hydraulic rising bollards
Material
304 stainless steel
Weight
Approx 110KG/pcs
Moving body Height
600mm (customized)
Moving body Diameter
219mm (OEM: 133mm,168mm, 219mm, 273mm etc.)
Total Height
1100mm (customized)
Steel Thickness
6mm±0.3 (customized )
Engine Power
370W
Movement Mechanism
Integrated electric-hydraulic drive
Unit Operating Voltage
Supply voltage: 220V (control voltage 24V)
Operating Temperature
-45℃ to +75℃
Dustproof and waterproof level
IP68
Optional Function
Traffic Lamp, Solar light, Hand Pump, Safety Photocell, Reflective warning
tape/sticker
Installation Distance
Bollard center spacing 1.2-1.5m
Running time
2-6S ( adjustable).
Control mode
Remote control ( 50m - 20m) /button line control/license plate
recognition/Bluetooth sensor/mobile APP remote control (optional).
Power failure emergency
Reserve battery
Collision resistance
1108KJ ( Car speed 65km/h)
External equipment
Traffic lights/voice prompts to pass (optional)
