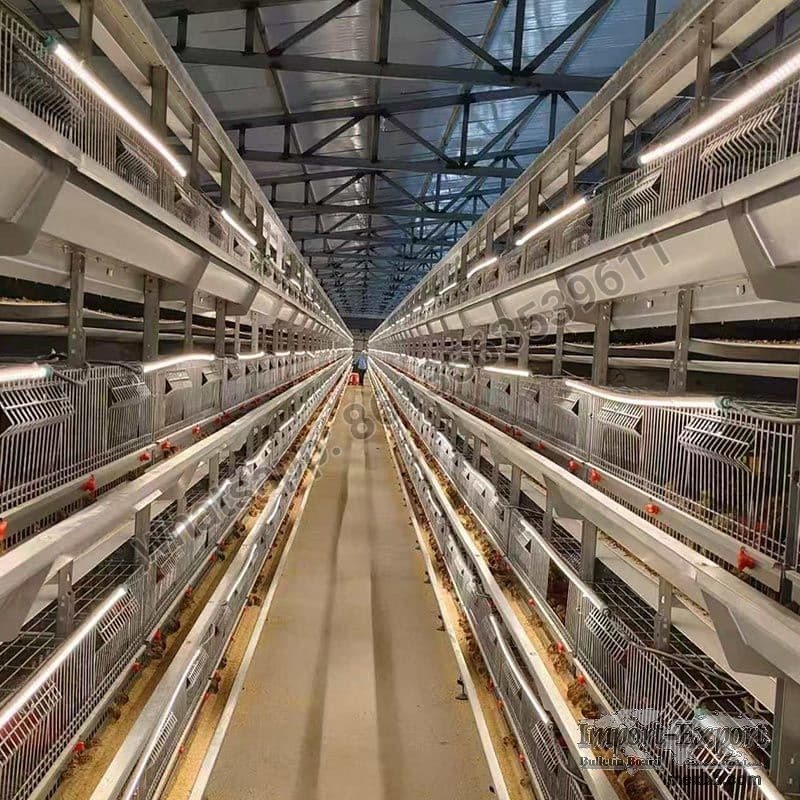

H Type Full Automatic Broiler Quail Cage

The H-type fully automatic meat quail cage is a modern and intensive breeding
equipment specially designed for meat quail farming (mainly for meat
production). It adopts a multi-layer three-dimensional H-shaped structure and
combines an automatic control system to achieve fully automated operations in
feeding, watering, manure removal, temperature control and other links.
Technical Parameters
Item Details
Cage Type H-type
Number of Layers  4/5tiers （4 tiers commonly used）
Number of Rows 2/3/4/5/6 rows
Birds Per Cage 80-120 birds
each set size (L*W*H) 1200*1000*1800mm (4tiers cage)
Single Cage Size (L×W×H) Approx. 1200×1000×350 mm
Material Hot-dipped galvanized / high zinc wire
Wire Diameter Bottom wire: 2.2/2.5 mm; Side wire: 2.5/2.8 mm
Mesh Size Bottom mesh: 8×8 mm; Side mesh: 25×20 mm
Supporting Equipment Automatic feeding, drinking, manure removal,ventilation
Suitable For Commercial broiler quail
Advantages High stocking density, space-saving, high automation, easy
management
