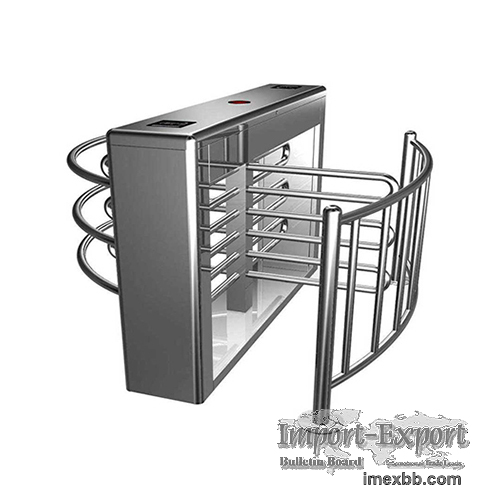

Half Height Turnstile Gate JDHHT-1

Reliable and affordable electric half height turnstile gate, half height rotor turnstiles, half height security turnstile coming from Chinese automatic turnstiles manufacturer & supplier

Half height turnstile gate JDHHT-1 offers an elegant and compact crowd control solution at entrance with high pedestrian traffic flow for any locations requiring effective crowd management such as athletic facilities, cafeterias, amusement parks, stadiums, office buildings. Half height security turnstile JDHHT-1 is reliable, fast and easy to use, and provides smooth, precise, quiet, controller, fast arm rotation by using advance digital positioning technology. Meanwhile, half height rotor turnstile JDHHT-1 is simplified integration to access control and visitor management systems such as facial reconition, barcod, fingerprint and QR scanner.

Waist height security turnstile JDHHT-1 provides single directional or bi-directional access according to actual requirements. The passage will be relased upon the reception of a a valid credential signal, electric half height turnstile gate JDHHT-1 will lock the passage immediately after the passing completed or after the predetermined time. Upon loss of power or fire system input, the passage Is released to provide a clear exit passageway

Featurers
1. Available in both one-way and two-way access control.
2. Easily integrates with almost any access control system
3. Free access under power failure
4. Easy, safe and fast to use
5. Easy installation and field-configurable
6. Easily change turnstile passage mode
7. Durable construction suitable for outdoor use in all weather conditions
8. Automatic self-centering prevents over or under travel of rotating section
9. Full height for maximum security
10. Free egress in emergencies or loss of power

Applications

Government
Par , k
School
Residential area
Office building
Metro terminal
Factory

Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 1150 x 1250mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600mm
IP Rate: IP45
Pass Speed: 30 ~35 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 5 million times
Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation
Working Environments: Indoor, outdoor (with shelter)

Minimum Order: 1 sets
