Handheld Polariscope detecting stress in large glass

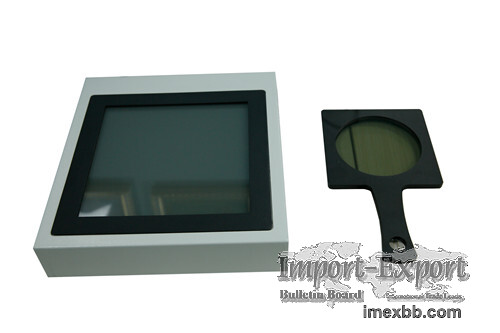

Handheld Polariscope ( Strain Viewer )
Different from common bench type Polariscope , this handheld Polariscope adopt
seperating design , that means the analyzer and polarizer are movable . In this
way , the net weight is almost reduced to half . This lightweight design make
it more convenient to carry .
The working space available within the unit enables a wide variety of
components to be accommodated for hand held examination under polarizing
light., such as fish tank.

Detecting object
1. any transparent glass products
such as : fish tank , mobile phone cover, lighting tube, solar glass
,automobile glass,sapphire, glass container , glass handicraft
2. any transparent plastic samples
such as :plastic bottle , cosmetic bottle , beverage bottle, plastic tray,
plastic film
3.Crystaline material

Specifications
Optical path difference of full-wave plate : 560nm
Viewing field: 200mm*200mm
Overall size:300mm*300mm*80mm
Voltage: 220V
Light source: White fluorescent lamp
Weight:4.5KG

Minimum Order: 1 pieces
