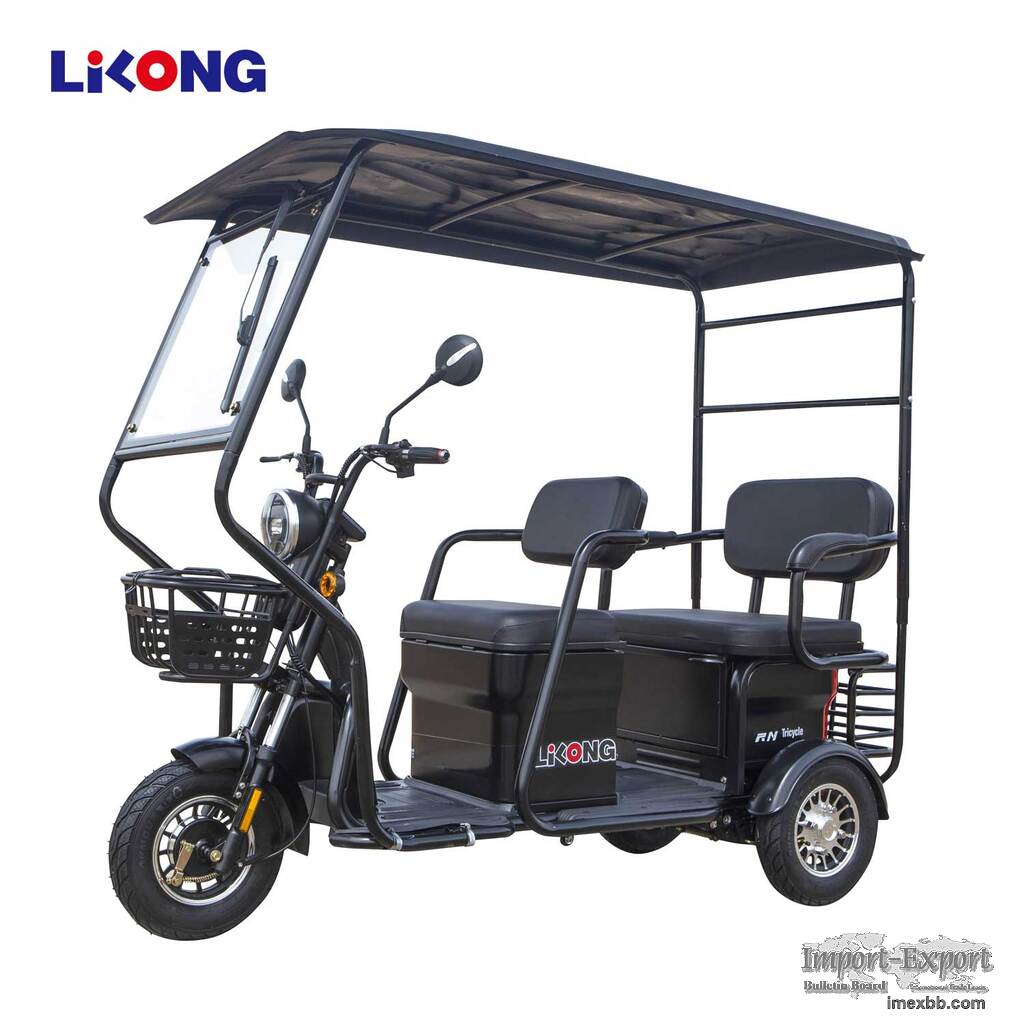

Handicapped Three Wheel Electric Scooter Electric Passenger Tricycle with R

1 Model No. L-P02
2 Motor 60V500W
3 Controller 12 Tube
4 Curb Weight 120KG Without Battery
5 Loading Capacity ≤200KG
6 Overall Dimension 2050*780*1750MM With Shield 2050*780*1050MM
Without Shield
7 Brake System Front:Disc / Rear: Drum
8 Climbing Ability ≤20°
9 Front/Rear Tyre Front/ Rear 3.00-10
10 Max Speed km/h 25KM/H
11 Battery 60V20AH
12 Charging Time 4-6H
13 Range per Charge/km 40-50KM
14 Front Fork Front Hydraulic
16 No. of Passenger (including driver) 2
17 Color Choice Red,White,Black
18 Container Capacity SKD: 52 Sets/40'HQ with Steel Frame

Minimum Order: 40 sets
