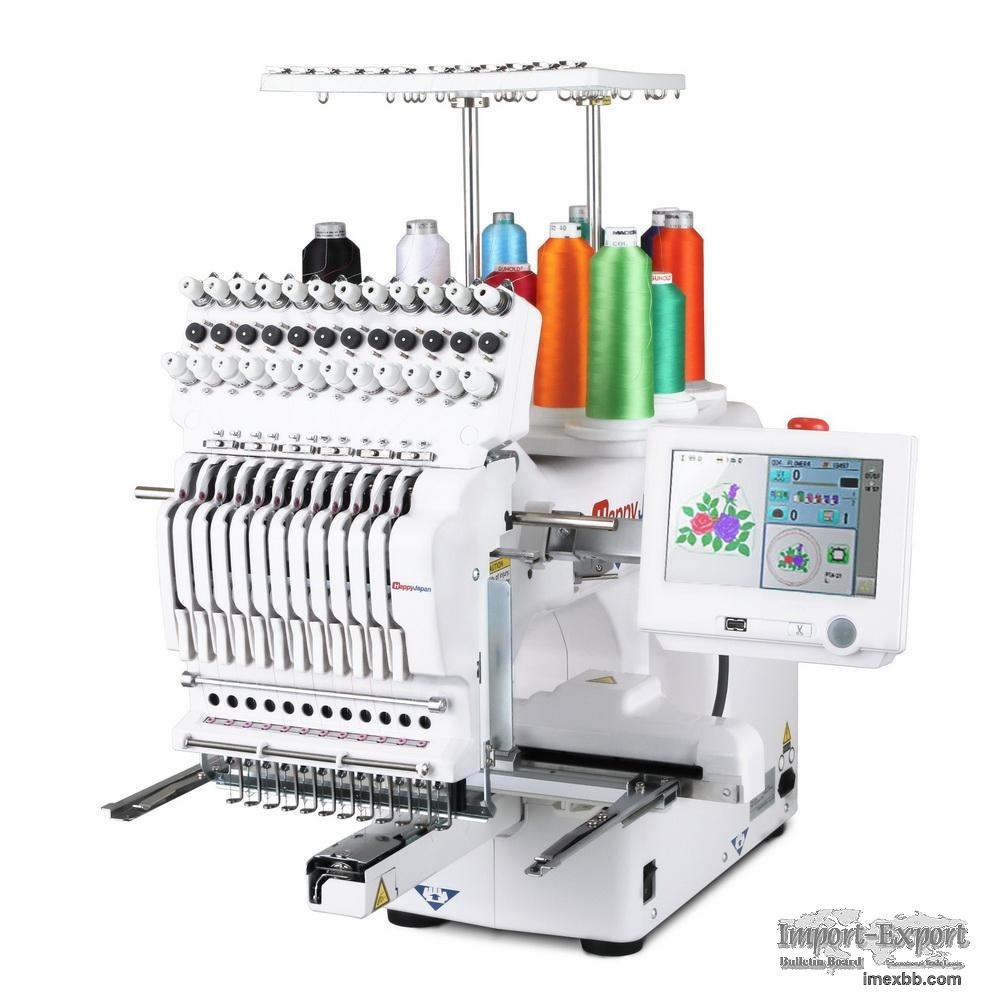

Happy Japan HCS3 1201 Voyager 12 Needle Commercial Embroidery Machine

HappyJapan’s 12-needle Voyager is the most capable compact single-head
machine in the industry. Within its efficient 11″ x 17″ footprint lies the
heart of a true commercial machine, with an oversize sewing motor, heavy-
duty drive shafts, belts, and bearings that enable sustained, high-speed
production while demonstrating extreme durability.

Its large tubular sewing field, true wide-field cap sewing ability, and
unrestricted sewing arm allow sewing flexibility unmatched in its class.
The HCS3 is the latest generation Voyager, featuring a redesigned sewing
head that’s more robust, easier to thread, and equipped with a built-in
laser marker. Other improvements include:

Ultra-slim profile sewing arm
Redesigned thread stand for more cone types
Increased memory capacity
Refined cut cycle for cleaner embroidery
12-Needle Voyager: A Proven Performer
Since its debut over 20 years ago, Voyager has been a revolution in
compact, commercial embroidery machines. Designed with HappyJapan’s heavy-
duty industrial standards, the HCS3 inherits the proven drive system that
allows continuous high-speed production without fatigue. It can even
outperform larger single-head machines in sustained output.

Amazing Capability on Finished Ballcaps
With a max speed of 850 SPM on caps, the HCS3 surpasses all other compacts
in quality and efficiency. From 3D puff to trucker-style hats, its ultra-
slim sewing arm enables higher sewing on caps and better results on low-
profile hats. It offers the widest sewing field in its class: 11.4" wide by
nearly 3" tall.

Special Features
Ultra-slim Sewing Arm
Perfect for pockets, sleeves, koozies, and more. Built-in laser marker
included.

Easy Maintenance
Minimal lubrication and cleaning requirements make upkeep simple.

Redesigned Thread Stand
Accommodates large cones and allows up to 250 color changes per design.

Easy Touchscreen Control Panel
Intuitive interface with quick access to common tasks, built-in help, and
auto-error correction.

Built to Last
Oversized motor with unmatched durability — no replacements due to wear
since 2003.

Unlimited Flexibility
Embroidery possible on large items like golf bags, suitcases, and totes
without obstruction.

Specifications
Sewing field: 11.4" x 11.2" (flat goods), 11.4" x 2.7" (caps)
Operating speed: 1000spm max, 850spm on caps
Memory: 100 million stitches / 3000 designs
Onboard lettering: 12 fonts (2" to 1/4" tall)
Laser position marker for easy alignment
Dimensions: 25.3"w x 29.4"d x 29"h
Weight: 103 lbs (fully assembled)
Included Accessories
2 x 320mm (12.6") square hoops
2 x 150mm (5.9") round hoops
Operator’s toolkit
HappyLINK & HappyLAN software
