Hc-125A Low Noise Energy Saving Rotary Air Blower

HC rotary air blower structure and working principle

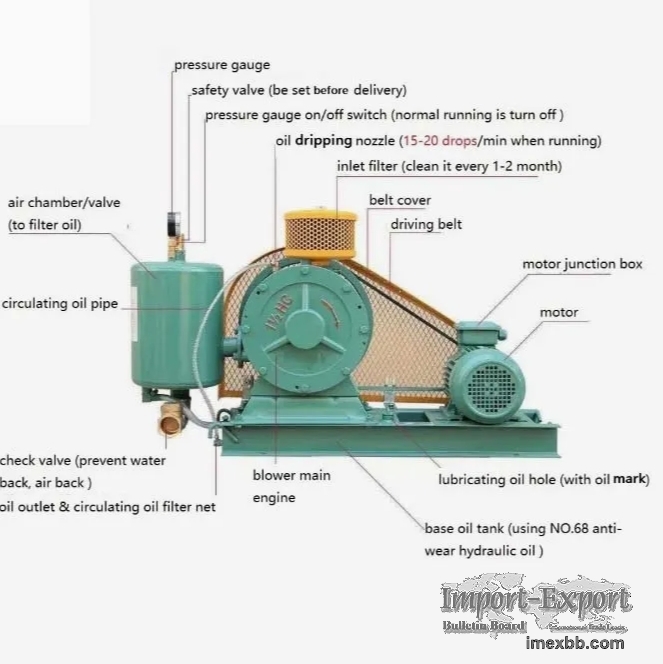

The rotary blower has an exquisite structure and is mainly composed of six
parts: motor, air filter, blower main engine, air chamber, base (with oil
tank), oil dripping nozzle

The blower operates on the eccentric rotor offset in the cylinder, it makes the
volume change between the lobes in the rotor slot to suck in, compress, and
discharge air

During operation, the pressure difference of the blower is used to
automatically send the lubricating oil to the drip nozzle, drip into the
cylinder to reduce friction and noise, and at the same time reduce the return
of air in the cylinder

Features:
Low noise tri-lobe rotor
Noise-reduction know-how application for casing
Integral-shaft ductile iron impellors
Dual splash lubrication
Over sized cylindrical roller bearings
Hardened teeth face for precision helical timing gear, taper-lock shaft
mounting
Versatile configuration
Piston ring air seals
Lip type viton oil seals
Air cooling
Automatic belt tensioner and integrated discharge silencer base frame
application for the blower package.
Specification:
Pressure to 98 KPa / Vacuum to -49 KPa
Flow: 0.6~113m3/min

Application:
Widely used in waste water treatment, petro-chemical, cement, power, metallurgy
and pneumatic conveying diverse industries.
Model NO.
HC-125A
Flow Direction
Axial Flow
Pressure
High Pressure
Certification
ISO
Features
Co , mpact Design, Easy to Maintain
Rotary Blower Air Pressure Range
0.1-0.5 Kgf/Cm2
Advantage
High Quality, Low Noise, Saving Energy
Weight
430kg
Transport Package
Wooden Case
Specification
163.5×56×108cm
Trade , mark
Greentech
Origin
China
HS Code
8414
Production Capacity
1000sets/Months
