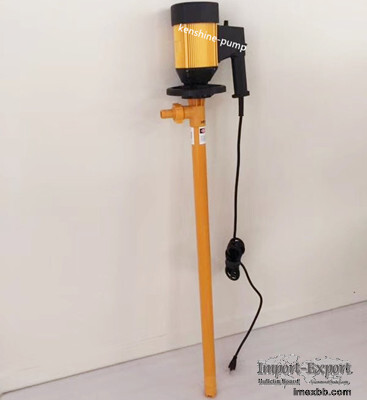

Hd High Efficiency Drum Pump

HD high efficiency drum pump is used to transport the ordinary medium and all kinds
of strong acids and alkali, and inflammable and explosive liquids(Oils) in standard
200L barrel.

Stepless adjustable speed motor, with the advantages of low noise and small impact,
and equipped with overheat protection device, to prevent the motor burning for
overload, thus ensuring the high reliability and durability of the motor.

Pump body and motor with screw flange installation disc, convenient disassembly and
installation without any tools.

No leakage: no leakage design of the pump pipe, more suitable for the delivery of
corrosive chemical liquid.

Overload protection: the motor is equipped with overload protection device.

Light weight: the total weight of pump and motor is 4-10kg, easy to carry and move.

Quick: 2-3 minutes to empty a 200L standard barrel.

No shaft seal: no leakage structure, no need to use mechanical seal, reduce
maintenance cost.

A variety of materials: polypropylene, PVDF, stainless steel, aluminum alloy
material is suitable for most low middle viscosity liquid transport to meet more
than 80% of the application.

A variety of driving methods: electric or pneumatic drive, to meet different power
sources.

Humanized design: ergonomic appearance design, easier for the operator to use.

Pumped liquids: it can transport ordinary medium and all kinds of strong acids and
alkali, and inflammable and explosive liquids.

Convenient interface: standard G1 "screw outlet, suitable for connecting all kinds
of joints.

Improved coupling: no alignment is required to install and only a few seconds to
connect.

Quick interface: the motor and pump pipe adopt quick interface, disassemble and
assemble freely.

Integral quick-release construction: no auxiliary tools are required for
disassembly and assembly.

Dry operation: self-lubricating bearings can be dried for a short time without
damaging the pump line.

High performance impeller: high performance open impeller with both large flow and
high head.

Maximum flow rate: 210L/m (electric), 80 l/m (pneumatic)

maximum head: 23m (electric), 11m (pneumatic)

maximum temperature: PP: 50℃, PVDF: 100℃, SS: 110℃

viscosity range: 0-2000cps (electric)

maximum weight: 1.8

Pump line length: 1000mm

drive mode: electric motor or pneumatic motor

Minimum Order: 1 sets
