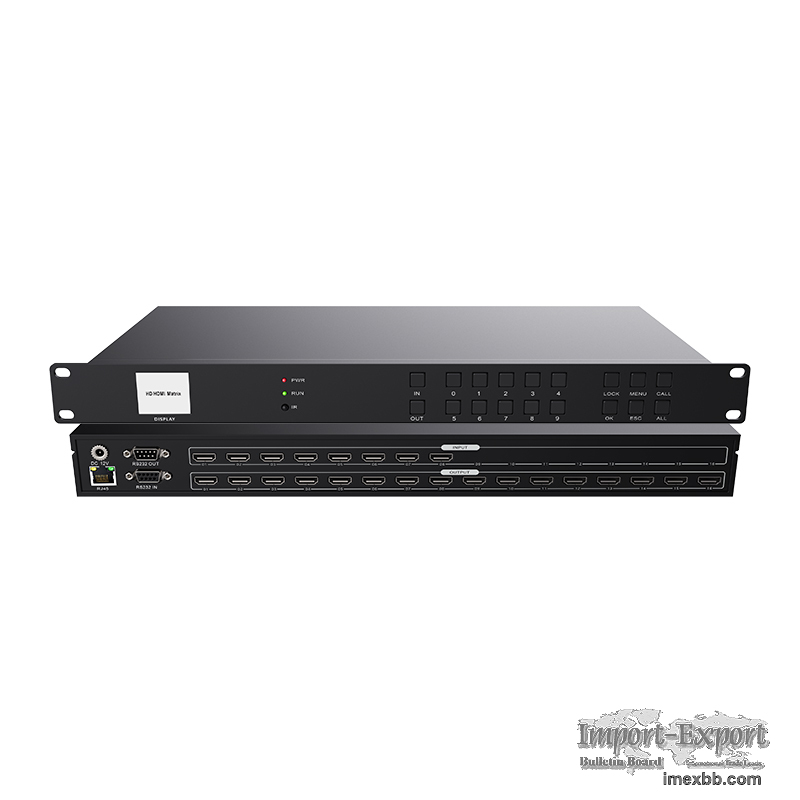

HDMI high-definition digital matrix 8in 16out video conference monitoring

1. The product adopts a pure hardware architecture, no operating system, no
hard disk, no maintenance, and avoids the problems of industrial control system
crash, hardware conflict, blue screen, and computer virus intrusion; It can be
switched on and off frequently, and the starting time is less than 1s; Stable
and reliable, the system data has been solidified before delivery, and
accidental power failure will not cause equipment damage.

2. The interface bandwidth is 6.75Gbps, supporting the highest resolution: 1920
* 1080, 60HZ.

3. Support basic matrix control commands and basic matrix functions.

4. It has power failure memory function and power failure field protection
function.

5. The control mode is flexible, with key panel and remote control operation.
It also provides 2-way standard RS-232 communication interface RJ45 port, which
is compatible with various environments and is convenient for users to use with
various remote control devices.

6. All metal chassis compatible with standard inch cabinet.

7. Support WEB, TCP/IP, key, RS232 serial port and other control methods,
compatible with various environments, and improve control efficiency.

8. HD HDMI matrix input has equalization and amplification capabilities, with
input+output up to 40 meters.

9. Support embedded audio, LPCM 7.1H, Dolby Trud HD, Dolby Digital+and DTS-HD
Master Audio transmission, and support synchronous switching of audio and video
signals.

10. ESD static protection design is adopted, which can withstand human body
discharge modes:+- 8kV (air gap discharge),+- 4kV (contact discharge),
effectively avoiding the interference and damage of static electricity to
equipment.

11. It supports 1.8 inch full-color LCD screen and key functions, and supports
real-time display of equipment information, fast switching of input and output
signals, plan retrieval and saving, etc.

12. LE-7100HD HD HDMI matrix can provide up to 32 user-defined plans, which can
be easily called and managed on the client.

Minimum Order: 1 pieces
