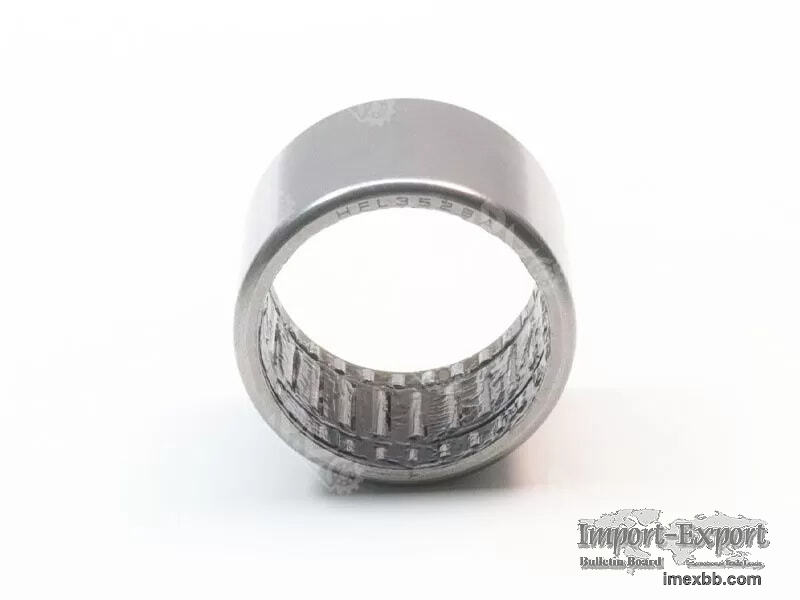

HFL3528A One Way Drawn Cup Needle Roller Bearing

HFL3528A One-Way Pressed Outer Ring Needle Roller Bearing is a compact
transmission bearing.

Model number: HFL3528A
Size: 35x42x28 mm
Weight: 0.055 KG
MOQ: 50pcs
The HFL3528A one way drawn cup needle roller bearing, also known as a needle
roller clutch, is designed for reliable one-direction rotation in compact
mechanical systems. With a drawn cup outer ring made of ST14 steel and
precision GCr15 chrome steel rollers, this model ensures high strength, minimal
radial space, and smooth locking performance.
Structural Features:
Belongs to the HFL series, consisting of a stamped outer ring, plastic cage,
needle rollers, and spring plates. The cage can be configured with plastic or
stainless steel spring plates to guide the needle rollers. The inclined raceway
on the outer ring, together with the needle rollers, forms a locking mechanism
to achieve unidirectional transmission functionality. Support bearings are
installed on both sides of the needle clutch to bear radial loads. These
support bearings consist of needle and plastic cage assemblies. The absence of
an inner ring design results in relatively higher shaft wear, typically
requiring shaft hardness to reach HRC 58-62.
Construction & Design Features
Stamped outer ring with precision-ground inclined raceway
Plastic or stainless steel cage with integrated spring reed
Available in grooved and solid ring types
Triple-lip sealing options for dust and moisture protection
Compact profile ideal for space-limited designs
Available Series & Related Models
We produce a complete range including HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC,
DC, CSK, CKB (B200), ASNU, CKA, FWD, and NF series. Stainless steel variants
are available for corrosive environments such as marine or fishing
applications.
