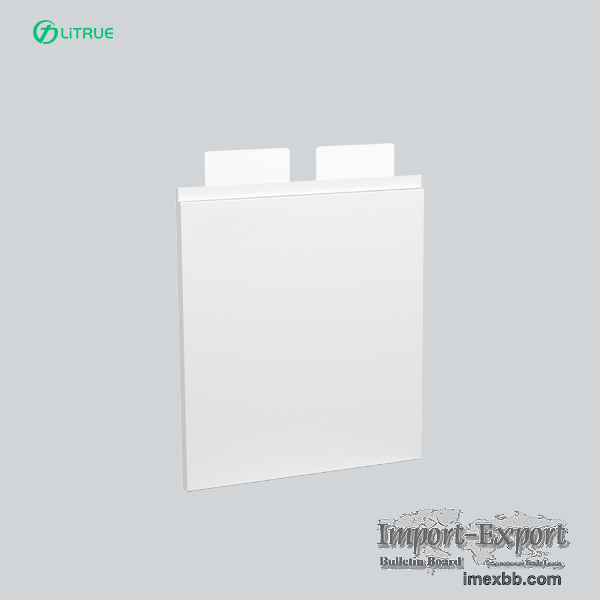

High C-rate LFP Pouch Battery Cell

At the core of this series is the P10E0E5-17500FP (17.5Ah) model. Utilizing
highly secure LFP cathode materials and an advanced flexible stacked pouch
structure, this cell dramatically lowers internal resistance. It is uniquely
capable of supporting 6C continuous charge and discharge, and can handle
extreme pulse discharges up to 20C. This ensures reliable, burst-power
delivery for engine starts and sudden heavy mechanical loads without
compromising the cell's structural integrity.
WebSite：https://www.litruebattery. , com/products/17.5ah-6c20c-high-c-rate-lfp-
pouc , h-battery-cell/
Key Features & Engineering Advantages
High Rate Power Output: Capable of 6C continuous charge/discharge, making it
the perfect energy core for the frequent start-stop nature of hybrid tractor
systems.
Strong Pulse Current Capability: Handles 15C pulse charging and 20C pulse
discharging, instantly accommodating sudden engine load changes and energy
recovery (regenerative braking) demands.
Ultra-Long Cycle Life: Achieves an astounding ≥8000 cycles (under rigorous
3C/3C testing conditions), significantly reducing the Total Cost of Ownership
(TCO) over the lifespan of the machinery.
Inherent Safety & Stability: Built with LFP chemistry, it offers excellent
thermal stability, ensuring safe operation in high-intensity, demanding
agricultural environments.
Wide Temperature Adaptability: Guaranteed stable power delivery across harsh
climates, operating reliably from -30℃ up to 55℃.
Compact Stacked Pouch Design: The lightweight, low-internal-resistance design
simplifies battery pack assembly and thermal management system integration.
Technical Specifications (Model P10E0E5-17500FP)
Below are the detailed engineering specifications for the P17 high-power
cell. Our team supports full customization for battery module grouping based
on these cells.

Model Number P10E0E5-17500FP
Chemical Materials LFP (Lithium Iron Phosphate)
Cell Structure Flexible Stacked Pouch Cell
Nominal Capacity (Ah) 17.5
Energy Density (Wh/kg) 137
Max. Continuous Charge Rate 6C
Max. Continuous Discharge Rate 6C
Max. Pulse Charge Rate 15C
Max. Pulse Discharge Rate 20C
Cycle Life (times) ≥8000 @ 3C/3C
Operating Temperature (℃) -30℃ ～ +55℃
Dimensions (T×W×H, mm) 9.6 × 140 × 145

Minimum Order: 100 pieces
