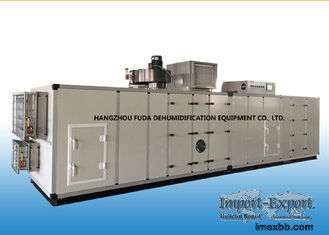

High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil

High Efficiency Silica Gel Wheel Industrial Desiccant Dehumidifier With Cooling
Coil




Quick Details:



Style: Refrigeration combined with Wheel

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 6000m³ /h

Supply Air Parameters: T=25℃ RH=20%

Dehumidifier Quality: High

Installed Power: 49.1kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





General Description:



ZCB Series Desiccant Dehumidifier System removes humidity using both
refrigeration and a desiccant rotor, so it can both control the humidity and
temperature of the air independently in one packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist
outside air first passes through filters and then the cooling coil where it is
cooled. The air then goes through the desiccant wheel where the air is
dehumidified and the temperature is raised. At last the air is delivered
directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is
drawn into the unit using the exhaust fan. The air filtered and then heated and
humidified during the energy recovery process. The air is then heated while
passing through the regeneration coil. The heated air removes the moisture that
the desiccant wheel adsorbs from the process air stream.





Applications:



War Industry, Scientific Research, Electric Power Transportation
Lithium Battery Industry, Biotechnology Pharmaceutical Industry
Chemical, Daily Chemical Industry, Food Beverage Industry
Safety Glazing Material Industry, Tyre and Rubber Industry
Medical Instrument, Vegetables Frozen, Precise Instrument
Wood Goods, Shipbuilding Painting Industry, Kinds of Storage




Specifications:



Main Parameters



Model

ZCB—6000

Total Process Airflow

6000m3/h

Fresh Airflow

300 m3/h

Recirculated Airflow

5700 m3/h

Rotor Regeneration Airflow

2000m3/h

Parameters of Output Air

T=25℃ RH=20%

Regeneration Power

42kw

The Power of Regeneration Fan

1.5kw

The Power of Blower

5.5kw

The Power of Driving Motor

0.1kw

Installed Power

49.1kw

Cooling Load

232.6kw

Power Supply

3P/380V/50HZ





Competitive Advantage:



Sweden Proflute silicon gel wheel
A totally self contained unit
PLC automatic control system, human-machine interface
Aluminum alloy frame, anti-cold bridge
Body modularization design, foam injected double wall casing
Stainless steel drain pan and bottom boards
Process and reactivation air flow sectors are insulated
Electric or steam heating or convert type can be available
All operation parameters can be on-line observed, ensuring operation
reliability
High temperature safety thermostat cutout
Electrical interlocking of fan motors, heaters and rotor driving




User Friendly Automatic Interface Control System:



High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil 0





Production Workflow Chart:



Rotary Wheel Industrial Desiccant Dehumidifier for Pharmaceutical Industrial
23.8kg / h





We can make suitbale dehumidifying solution for you according to your
requirements. If you are interest on our product, contact us now.
