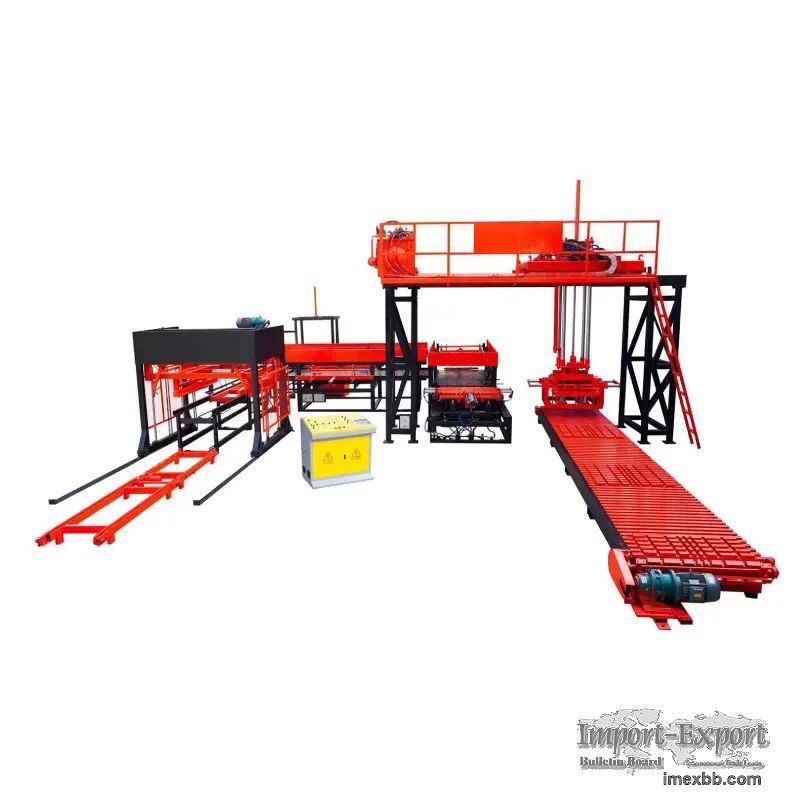

High Level-Block Palletzing Cuber

Selling Units: Single item
Single package size:60X50X50 cm
Single gross weight:68.000 kg

Product Overview
XX- 1200B preformed-holes dry block packing system is suitable for
palletizing of dry finished blocks of simple block making production line,
belonging to semi-automatic palletizing production line, which is
independently set up near the product maintenance yard, and can also be
connected in series in the block production line to implement on-line
palletizing.

The automatic preformed-holes dry block packing system can separate the
bricks of different types and specifications produced by different types of
brick machines, reassemble the blocks, and finally form a square stack of
about one meter. Cross palletizing is carried out, and the fork brick hole
position can be generated automatically according to the need. This high
level-block palletzing cuber can achieve a maximum palletizing height of
1400mm. After the palletizing is completed, it can be palletized and output
through a heavy chain conveyor, which can be packed manually or equipped with
an automatic baling machine. Each node on the whole production line has a
pre-stored position to save the forklift running time.

The whole system adopts PLC and touch screen control, cooperate with laser
induction and intelligent sensor to realize unmanned automatic operation, and
automatically stop the alarm and display the fault location when a fault
occurs, which can be easily eliminated without professional and technical
personnel. Equipped with remote control systems and cloud data equipment
manufacturers can solve all problems in the office all the time. The
operation of the equipment is controlled by electricity, gas and liquid
respectively, which does not interfere with each other and acts coherently.
it cycle time is about 15 seconds for one layer blocks, and the output
capacity is about 15000pcs/shift standard bricks (200*100*60mm).
Specification
Height of machine 5500mm
Floor area of whole machine 19000*10000mm
Weight 20000KG
The size of block setting 1000*1000mm( 48 pcs/layer, 936 pcs/stack)
Cycle time 13-15s
Max height of block setting 1400mm
The Benefits of Using Block Palletizing Cubers in Construction Equipment
Manufacturing
· Increased Efficiency: The automated process of Block Palletizing
Cubers by Kimberly Machinery boosts production speed and cuts down on labor.
This ensures resources are used in the best way possible.
· Consistent Quality: Block Palletizing Cubers stack bricks accurately.
This way, the stacks are always even, and the bricks stay in perfect
condition, an important factor for the high-quality standards in Concrete
Block Making Machines.
· Cost Savings: High Level-Block Palletizing Cubers slash manual labor and
ramp up production. In the long run, this reduces operational costs and saves
a lot of money.
Why Choose Us
At Kimberly Machinery, we are committed to offering cutting-edge solutions
for the construction industry. Our focus on quality and innovation allows us
to deliver high-performance Block Palletizing Cubers, Brick Machine
Auxiliary Equipment, and Concrete Block Making Machines that meet the ever-
evolving needs of manufacturers. Our reputation as a leading construction
equipment supplier is built on reliability, customer satisfaction, and long-
term support.
