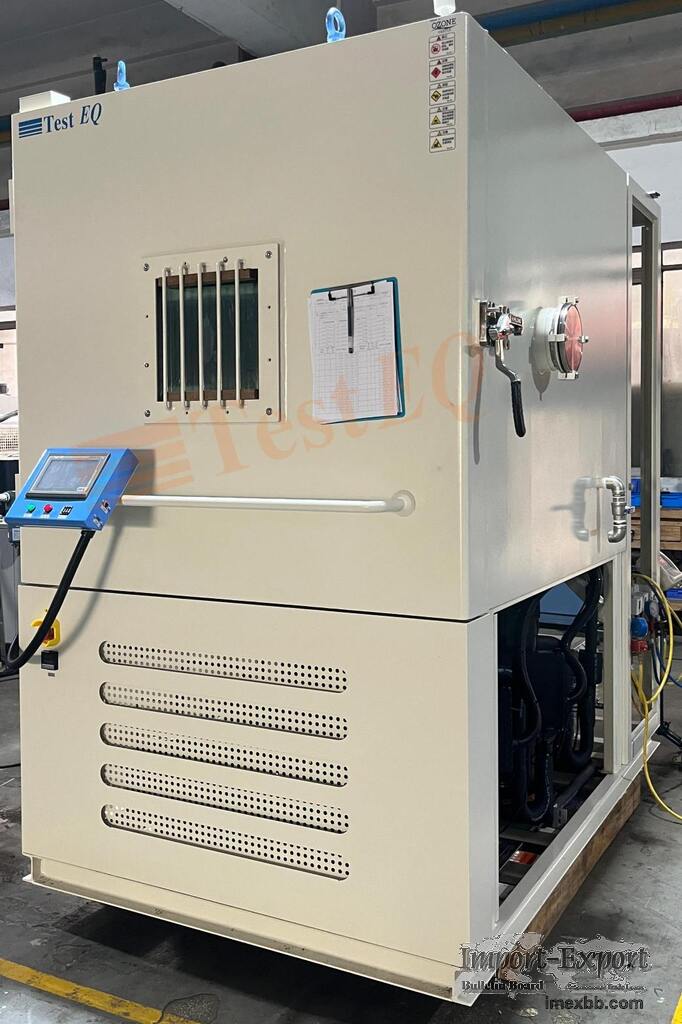

High Low Test Temperature Humidity Chamber ISO 7137:1995

Temperature range
The requirement setting for the test product is within the range of -70℃ to
+150℃. In specific tests, different regions and application scenarios have
specified priority values for different temperature grades. For example, in
low-temperature environments, there are -65℃, -55℃, etc. High-temperature
ambient temperatures include +200℃, +175℃, etc.
Temperature control accuracy
The test chamber should precisely control the temperature, and the control
accuracy is usually ±0.5℃. The heating/cooling rate is set according to the
requirements of the tested product. Generally, the heating rate is 5℃/min and
the cooling rate is 3 ℃/min.
Humidity range
The test product needs to operate in a humid environment. The test chamber
should have the function of regulating humidity, and the general humidity range
is 10% - 98%RH. The humidity control accuracy test chamber should precisely
control humidity, with a control accuracy typically of ±2%RH.
Circulating air volume
The circulating air volume inside the test chamber is set according to the
requirements of the tested product, generally at 1030m/s. The cooling method:
The test chamber can achieve cooling through natural cooling or forced cooling.
Control mode
The test chamber can be intelligently controlled through computers, PLCS and
other means.If you need more information about the models of our testing
equipment. Please contact me. https://www.chamber-testing.com
Technical Specifications
Temperature Range: -70°C to +150°C

Altitude Simulation: Sea level to 43,000m (110-0.1 kPa)

Rapid decompression: Achieve 16,800m pressure differential (4,550m → 21,350m)
within 15 seconds

Humidity Range: 10% to 98% RH

Chamber Capacity: 0.125 to 8.9 m³ (customizable)

Noise test：≤ 68dB

Patent Number: CN202310792763.3

Minimum Order: 1 pieces
