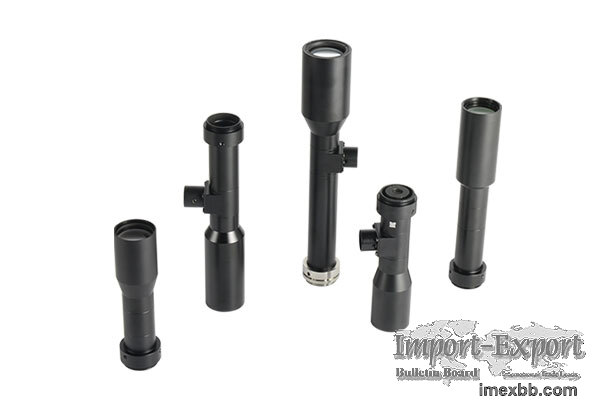

High Mag 1/2' Sensor Telecentric Lens Long Working Distance

High Mag 1/2' Sensor Telecentric Lens Working Distance

Standard resolution telecentric lens

Wide magnification range from 0.5X to 2X

Bi-telecentric design and object telecentric design

22 standard models of this double telecentric lens series support up to long
working distance up to 300MM

Suitable for various applications, alignment, inspection, measurement, etc.

C mount


Model Optical Size Sensor Length (mm) Sensor Width (mm)
Diagonal (mm) FOV Length (mm) FOV Width (mm) Lens Length (mm) Max
Diameter (mm) Preview (pdf)
XF-T05X150 1/2' 6.4 4.8 8 12.8 9.6 104.4 29
XF-T05X150D 1/2' 6.4 4.8 8 12.8 9.6 107.5 29
XF-T05X200D 1/2' 6.4 4.8 8 12.8 9.6 91.9 29
XF-T05X200 1/2' 6.4 4.8 8 12.8 9.6 95 29
XF-T1X150 1/2' 6.4 4.8 8 6.4 4.8 140.2 22
XF-T1X150D 1/2' 6.4 4.8 8 6.4 4.8 143.3 22
XF-T1X250 1/2' 6.4 4.8 8 6.4 4.8 147.3 30
XF-T1X250D 1/2' 6.4 4.8 8 6.4 4.8 149.8 30
XF-T1X300 1/2' 6.4 4.8 8 6.4 4.8 220.7 30
XF-T1X300D 1/2' 6.4 4.8 8 6.4 4.8 223.2 30
XF-T1X420 1/3' 4.8 3.6 6 4.8 3.6 209.7 30
XF-T1X420D 1/3' 4.8 3.6 6 4.8 3.6 210.7 30
XF-T2X150B 1/2' 6.4 4.8 8 3.2 2.4 102.8 24
XF-T2X150BD 1/2' 6.4 4.8 8 3.2 2.4 102.8 24
XF-T2X200B 1/2' 6.4 4.8 8 3.2 2.4 122.6 26
XF-T2X200BD 1/2' 6.4 4.8 8 3.2 2.4 122.6 26
XF-T2X250 1/1.8' 7.2 5.3 9 3.6 2.7 189.1 30
XF-T2X250D 1/1.8' 7.2 5.3 9 3.6 2.7 191.7 30
XF-T2X300 1/2' 6.4 4.8 8 3.2 2.4 189.7 34
XF-T2X300D 1/2' 6.4 4.8 8 3.2 2.4 194.1 34
XF-MT1X200 2/3' 8.45 7.07 11 8.5 7.1 188.7 36
XF-MT1X200D 2/3' 8.45 7.07 11 8.5 7.1 191.9 36

Canrill is a professional optical lens manufacturer, we provide camera lens
selection, line scan camera lens, line scan lens and etc. Want to know more?
Please contact us.

Minimum Order: 8000 pieces
