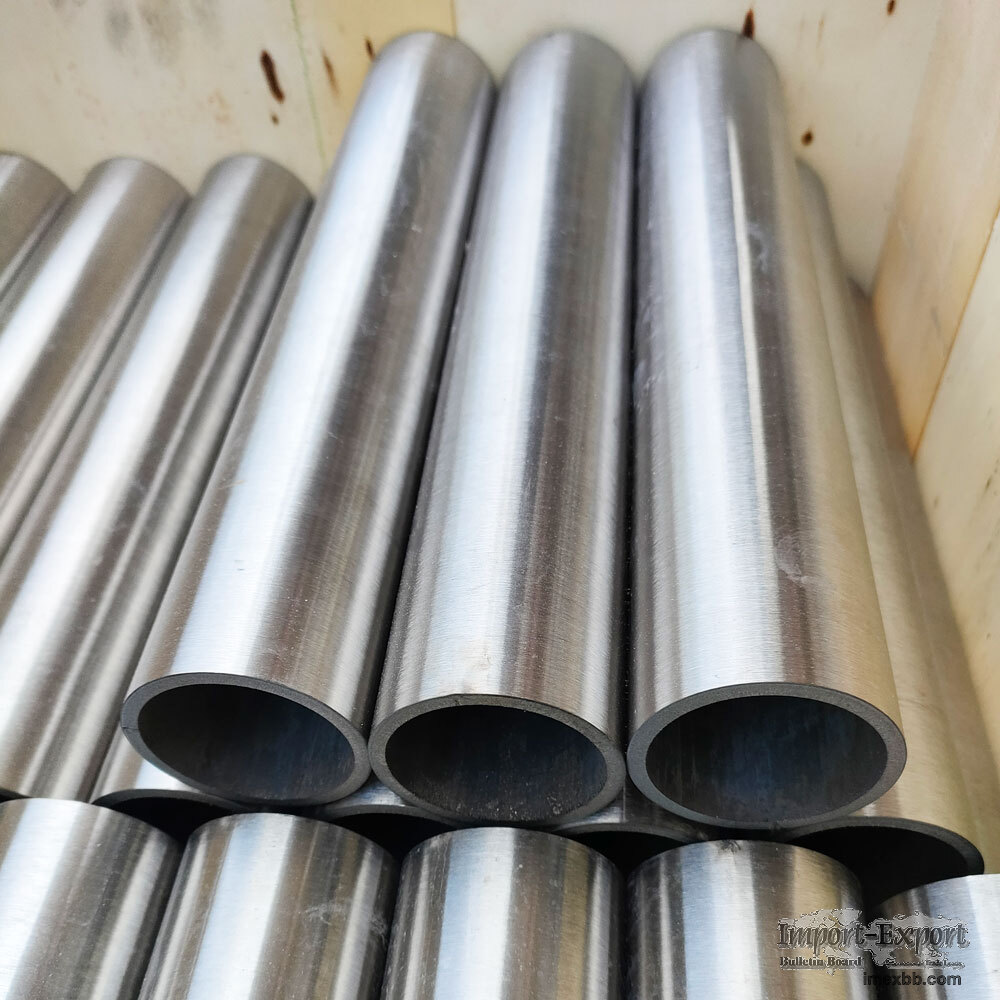

High-Performance Hastelloy C-276 Tubes

Introduction to Hastelloy C-276 Tubes
Hastelloy C-276 tubes are widely recognized for their exceptional resistance
to corrosion and high temperatures, making them a preferred choice in
chemical processing industries. These tubes, composed of a nickel-
molybdenum-chromium alloy, offer superior performance in aggressive
environments where traditional materials fail.

Material Overview
Hastelloy C-276 (UNS N10276) is a high-performance nickel alloy known for
its outstanding resistance to pitting, crevice corrosion, and stress
corrosion cracking. The unique chemical composition of this alloy provides
unmatched durability and longevity.

Chemical Composition:
Nickel (Ni): Balance
Molybdenum (Mo): 15.0-17.0%
Chromium (Cr): 14.5-16.5%
Iron (Fe): 4.0-7.0%
Cobalt (Co): ≤ 2.5%
Tungsten (W): 3.0-4.5%
Carbon (C): ≤ 0.01%
Manganese (Mn): ≤ 1.0%
Silicon (Si): ≤ 0.08%
Sulfur (S): ≤ 0.03%

Applications of Hastelloy C-276 Tubes
Due to their superior chemical resistance and mechanical properties,
Hastelloy C-276 tubes are extensively used in various industries, including:
Chemical Processing: Ideal for reactors, piping systems, and vessels
handling strong acids and oxidizing agents.
Pharmaceutical & Food Processing: Ensures contamination-free transportation
of fluids in critical applications.
Power Plants: Used in heat exchangers, condensers, and flue gas
desulfurization systems.
Marine & Offshore: Excellent resistance to seawater corrosion makes it
suitable for desalination plants and offshore structures.
Aerospace Industry: Applied in high-temperature environments where corrosion
resistance is crucial.
