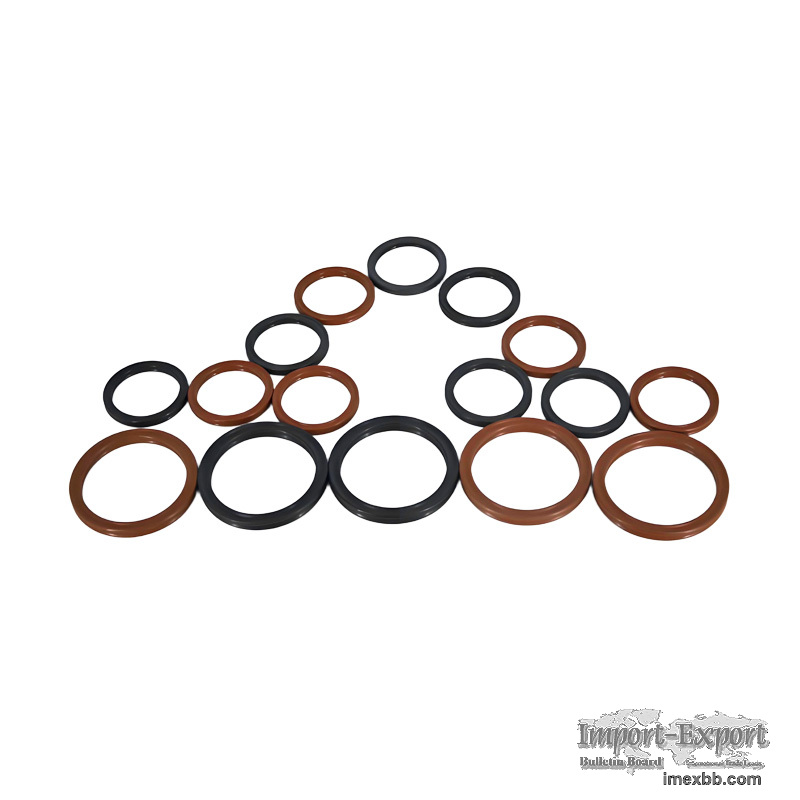

High Performance X Ring Seal Material Options X-rings Installation Guidance

In the evolving world of industrial sealing, X-ring seals—also known as Quad
Rings—have become a reliable choice for engineers seeking enhanced sealing
performance. These seals, shaped with a distinctive four-lobed cross-section,
are widely used in applications where traditional O-rings may face limitations
such as twisting or leakage under high dynamic pressure. Their design ensures
more stable contact surfaces, reducing friction, improving lubrication
retention, and extending service life across various machinery types.

From hydraulic cylinders to pneumatic valves, X-rings are found throughout
modern equipment systems. In hydraulic equipment, they are particularly
effective in reciprocating or rotating motion, preventing internal oil leakage
and maintaining system efficiency. In pneumatic devices, X-rings can maintain
air tightness even under fluctuating temperatures and high-frequency
operations, a feature especially valued in automated production lines. Their
versatility also extends to automotive assemblies, where they serve in brake
systems, gearboxes, and steering components—areas that demand both chemical
resistance and mechanical durability.

When choosing an X-ring seal, the selection of material is often a decisive
factor. Common options include NBR (Nitrile Rubber) for general oil resistance,
FKM (Viton or Fluoroelastomer) for high-temperature and chemical stability. The
key lies in matching the compound to the specific working environment—
pressure, temperature, and fluid type—since a mismatch can result in premature
failure or seal deformation.

Proper installation is equally critical. An often-overlooked detail is ensuring
the groove dimensions correspond to the X-ring’s cross-section, preventing
compression set or twisting. Applying the right amount of compatible lubricant
during assembly can help minimize friction and surface abrasion. Many
maintenance engineers have noted that even small deviations during installation
—like uneven pressure or improper stretching—can shorten a seal’s lifespan
significantly. These are practical lessons learned from real workshop
experiences rather than theoretical guidelines.

As global industrial automation continues to expand, the demand for reliable
sealing components has grown in sectors such as construction machinery, marine
systems, chemical equipment, and renewable energy. Dealers and distributors in
these industries often look for suppliers who can not only provide a complete
product range but also offer flexible delivery and technical support. In this
regard, brands like NQKSF have established strong reputations for consistency
and expertise. With more than 30 years of experience in the sealing field,
NQKSF provides comprehensive solutions that go beyond standard supply.

Its services include rapid delivery of standard parts, covering thousands of
specifications for O-rings, oil seals, and X-rings to ensure immediate
availability. For projects requiring unique configurations, the company offers
customized support, guiding customers through material selection, structural
design, and prototype testing. These tailored services have proven valuable for
distributors and OEMs managing complex machinery or multi-brand systems.
Furthermore, NQKSF’s technical empowerment initiative helps customers optimize
seal performance, reduce downtime, and extend equipment reliability—reflecting
a deeper commitment to engineering collaboration.

Behind these services stands a strong manufacturing foundation. NQKSF operates
as an intelligent factory and recognized high-tech enterprise, with seals sold
to more than 80 countries worldwide. The company is also acknowledged as a
provincial innovation center and part of a specialized industrial cluster,
demonstrating its role as an industry leader in China’s sealing market. Its
wide product catalog, consistent inventory, and global distribution network
have made it a trusted partner for dealers seeking both quality and continuity.

The application of X-ring reaches far beyond a single industry—they are an
essential element in maintaining fluid stability, safety, and system
performance across countless mechanical systems. Their effectiveness depends
not only on material selection and precise installation but also on
collaboration with suppliers who understand the nuances of each operating
environment.

Minimum Order: 1000 pieces
