High precision lithium battery module laser welding machine

High precision lithium battery module laser welding machine
Product Description

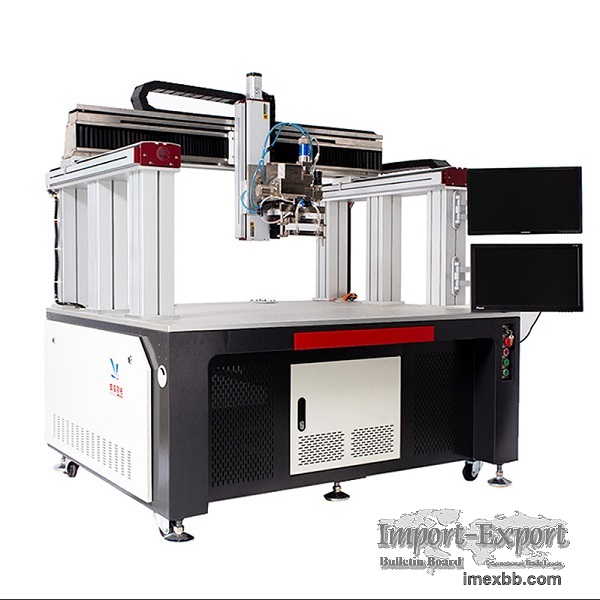

High precision Lithium Battery Laser Welding Machine has the gantry structure
which can be welded in large format, and multiple sets of fixtures can be
installed at the same time to weld various specifications and models of lithium
battery modules.
Laser welding spot is fine, high penetration, small taper, high precision;
welding surface effect is smooth and no bubbles.
The laser welding process is pollution-free, the heat affected zone is small,
and the deformation is small. The water cooling system is adopted to ensure the
life of the laser device.
High-definition CCD monitoring screen and red light positioning indicator make
the software editing process easy and convenient.
Stable performance of industrial PC, welding system software operation is
simple and easy to learn.
2.High precision lithium battery module laser welding machine technical
parameter
Item Specifications
Model HY-4000w
Laser source 4000w
XYZ Travel Customizable
R Axis Optional, 360° rotation
Position Accuracy ±0.02mm
Repeatability Accuracy ±0.01mm
Motion Source Servo motor
Max Speed 500mm/s
Cooling Method Water cooling
Electricity Demand Customizable

Minimum Order: 1 sets
