high pressure Medical Oxygen Cylinders

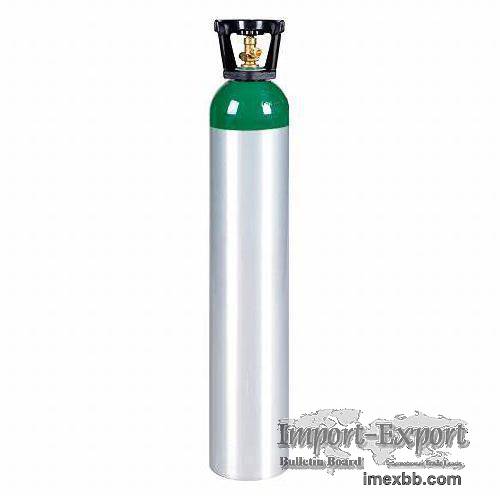

Aluminum medical oxygen cylinder overview
Volume(L) 4.55L(ME) Material AA6061
Outer Dia(mm) 111mm Height without valve 650mm
Working pressure 2015psi Weight without vale 3.6kg
Test pressure 3360psi Standard DOT3AL
DOT3AL U.S.A Standard Seamless ALUMINUM Cylinder

Model No. Outer Dia. (mm)
Volume

(L)

Working pressure

(bar/psi)

Test pressure

(bar/psi)

Length without valve (mm) Weight without valve (kg)
7oz/M2 51 0.3 124bar/1800psi 207bar/3000psi 238 0.37
9oz 54 0.38 124bar/1800psi 207bar/3000psi 245 0.38
12oz 64 0.51 124bar/1800psi 207bar/3000psi 245 0.49
16oz/M4 81 0.68 124bar/1800psi 207bar/3000psi 205 0.72
20oz 81 0.85 124bar/1800psi 207bar/3000psi 245 0.80
M4 91 0.787 207bar/3000psi 350bar/5000psi 230 1.25
M6 81 1 153bar/2216psi 255bar/3695psi 295 1.1
ML6 111 1.08 139bar/2015psi 232bar/3360psi 195 1.34
M9/MC/2.5lbs(co2) 111 1.68 139bar/2015psi 232bar/3360psi 280
1.75
MD 111 2.75 139bar/2015psi 232bar/3360psi 423 2.45
M22 133 3.9 139bar/2015psi 232bar/3360psi 420 3.3
5lbs(co2) 133 3.35 124bar/1800psi 207bar/3000psi 369 3
ME 111 4.55 139bar/2015psi 232bar/3360psi 650 3.6
10lbs(co2) 175 6.7 124bar/1800psi 207bar/3000psi 430 6
M60/15lbs(co2) 184 10 153bar/2216psi 255bar/3695psi 581 9.6
20lbs(co2) 203 13.4 124bar/1800psi 207bar/3000psi 600 10.8
M90 184 15.2 153bar/2216psi 255bar/3695psi 830 13.7
M122/MM 203 21 153bar/2216psi 255bar/3695psi 907 20

Minimum Order: 50 pieces
