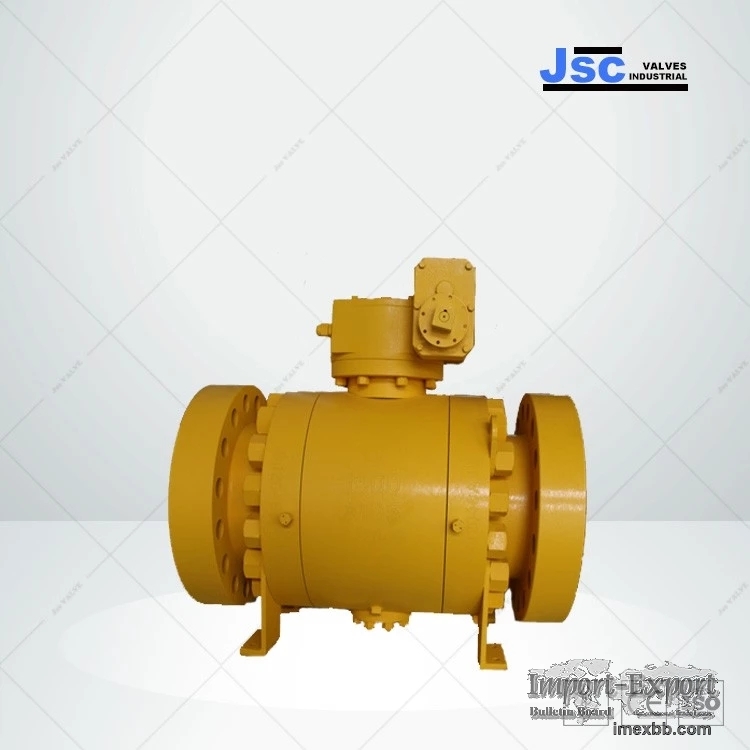

High Pressure Trunnion Ball Valve

Introducing our High Pressure Forged Steel Trunnion Ball Valve, sourced from a
reliable supplier. This valve is designed to meet API 6D, ASME B16.34, and DIN
3357 standards, making it suitable for high-pressure applications. Available in
sizes ranging from 2 to 48 inches, it is engineered for Class 1500 LB and PN250
pressure ratings. The valve is crafted from durable materials, including Carbon
Steel, Stainless Steel, and Alloy Steel, ensuring resilience in various
environments.

High-pressure forged steel ball valve is mainly used for long distance pipeline
transportation of oil and natural gas and urban gas pipeline system. Due to the
unique characteristics of the long distance pipeline valve, the design has fully
taken into account its ability to withstand pipeline stress, as well as safety,
weather resistance, long-term use of reliable sealing.

Forged Steel Trunnion Ball Valve is usually built by 3-piece body, suitable for
various kinds of pipelines, Class 150-4500 LB, PN16-PN720, JIS 5K-JIS 40K, is used
to cut off or turn on the pipeline medium, can be operated by worm gear, manual,
pneumatic actuator, electric driver, the connection type includes RF Flange, RTJ
Flange, Butt welding, Grayloc, etc.

SIZE RANGE AND PRESSURE CLASS

Size Range: 2 Inch-48 Inch (DN50-DN1200)
Pressure Range: Class 150 LB- 2500 LB (PN16-PN420)

DESIGN STANDARDS

Design / Manufacture: API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS
5351, JIS B 2071
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, DIN 3202, JIS
B 2002
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Flanged to ASME B16.5 (2 Inch-24 Inch) and ASME B16.47 Series A / B (26 Inch and
above).
Butt Welding Ends: ASME B16.25, EN 12982, GB/T 12224
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208, DIN 2401, JIS B 2003.

TECHNICAL FEATURES

Split body, forged steel, side entry design.
3-piece bolted construction permits disassembly in the field for repairs
Stem separated from the ball, no side load on the stem
Tight shut-off sealing mechanism
Explosive decompression-resistant seal
3 Mil Nickel plating for trim parts (Ball, Seat Ring)
Trunnion mounted ball for ease of operation at high pressure (Post and Plate
designs)
Double Block & Bleed Capability
Fire Safe Design
Multiple Stem Sealing
Double Isolation & Bleed (DIB) Design Available
Valve cavity pressure relief (SPE Seats)
Built-in sealant injection system for emergency seat & stem seal
Anti-provision Design
Anti-Static Device
Back-seated blowout proof stem
RPTFE, DEVLON, PEEK standard Plastic seat inserts
Acid Gas and High H2S/CO2 applications
