High Privacy PDLC Switchable Smart Glass Panel, Grey Laminated Smart PDLC G

Description:

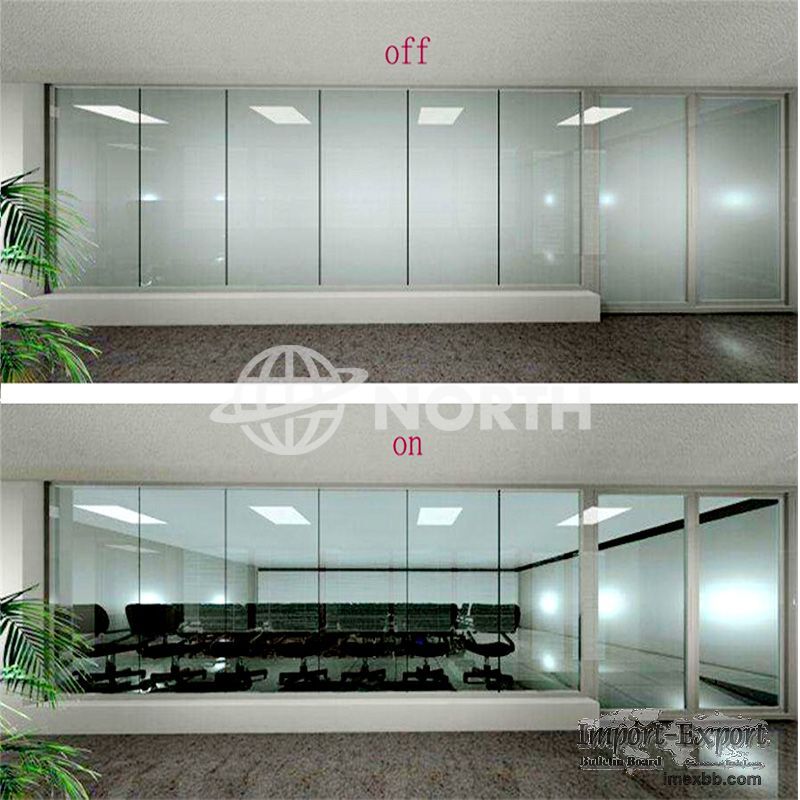

Laminated smart pdlc glass is a type of laminated glass via wiring PDLC film.
When electricity is applied to the film, the liquid crystals align and the
glass becomes clear; when the power is turned off, the liquid crystals return
to their normal scattered positions rendering the glass an opaque translucent.
It switches your glass from clear to frost with smart glass technology so it is
named switchable glass, smart glass panel, laminated smart PDLC glass.

PDLC Switchable Smart Glass have been widely used in homes, conference rooms,
office partition, hospitals, schools, military, hotels and so on.

Specification:
Glass Type PDLC Switchable Smart Glass
Glass Thickness 6.38mm,
8.38mm,10.38mm,12.14mm,13.52mm,17.52mm,21.52mm , ,25.52mm,32.28mm, and multi-
layers big thickness glass such as 5*15mm, 9*19mm and so on
Tolerance As per standards
Glass Color Clear PDLC Switchable Smart Glass, Low Iron PDLC Switchable
Smart Glass, Grey PDLC Switchable Smart Glass, Milky White PDLC Switchable
Smart Glass, Bronze PDLC Switchable Smart Glass, Pink PDLC Switchable Smart
Glass, Yellow PDLC Switchable Smart Glass, Blue PDLC Switchable Smart Glass,
Black PDLC Switchable Smart Glass etc.
Size Max: 2440mm L*3660mm H, can be customized
Edge Processing Flat Edge, Seamed Grind Edge, Polished Edge, Bevel edge, Flat
Polished Edge, Round Edge, C shape Edge
Irregular Shape Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges
can be bright polished.
Hole & Notch Countersunk holes, round holes, bell-mouth holes, simple notch,
mickey ears cutouts, etc. The edge of hole and notch can be polished by CNC
Trade Terms EXW, FOB, CIF, DDU, etc
Lead Time Generally 2-4 weeks
Terms of Payment T/T, LC, etc.
MOQ To be discussed
https://www.chinanorthglass.com/produ , ct-high-privacy-pdlc-switchable-smart-
glass-pa , nel-grey-laminated-smart-pdlc-glass.html
Advant , ages:

Enjoy the natural light without blinds

Energy best efficient

Create connected spaces with operable electric glass walls, partitions

Easy to install

Keep noise out


Quality Standard:

In accordance with industrial standard


Application:

Skylight

Shower Screen Doors

Doors And Window

Partition

Buildings

Re , sidential

Hospital

Schools

Mi , litary

Movies

Minimum Order: 1 square metres
