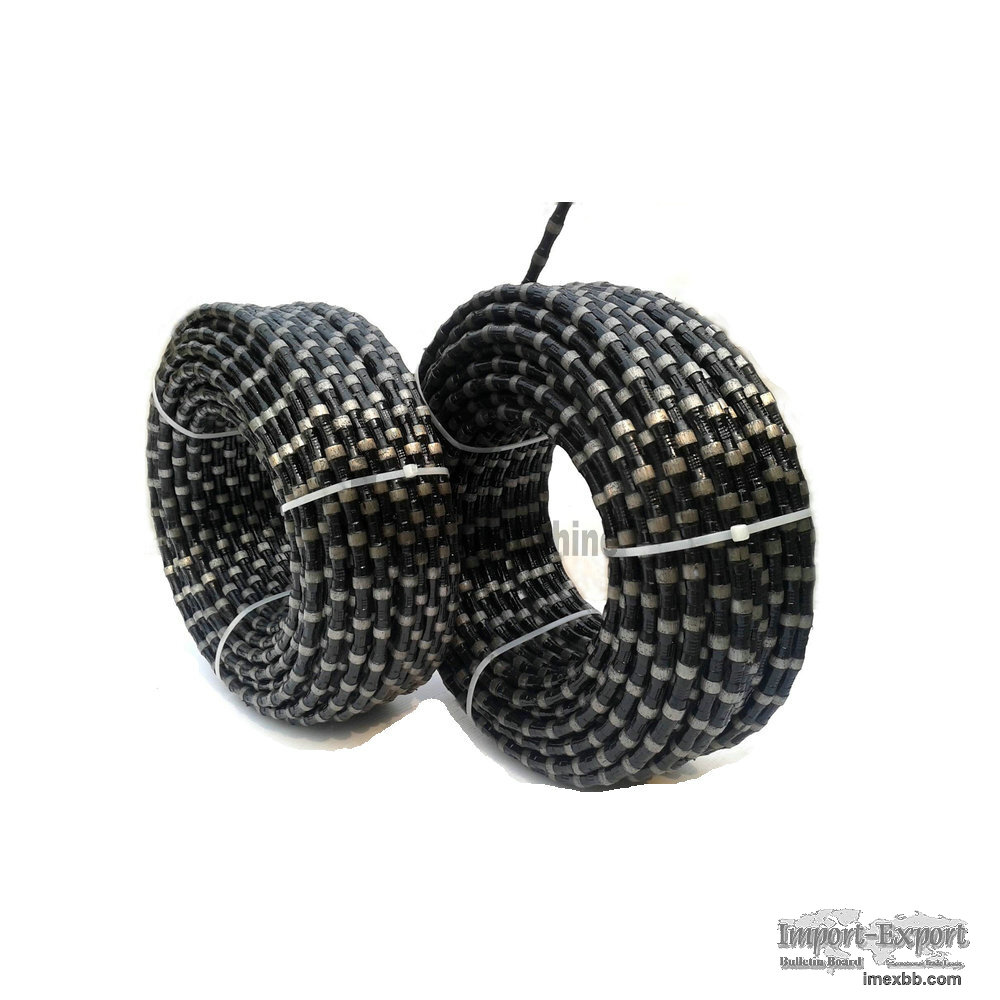

High Quality Diamond Wire Saw Rope For Reinforced Concrete Cutting Factory

As it is always known, diamond wires can help you renovate, demolish and
dismantle houses, bridges and large buildings. ChinShine as a professional
diamond cutting blade manufacturer provides you with high-quality diamond wire
saws to ensure efficiency and reduce costs.

The Performance Of Chinshine Concrete Diamond Wire Saw
The performance of the ChinShine Concrete Diamond Wire Saw:
granite diamond wire saws are commonly used to cut all kinds of concrete in
various projects where diamond saw blades are not suitable.

The main properties of diamond rope saw are.
- Applicable to cutting bridge piers, irregular reinforced concrete, chimneys,
beams, and other reinforced concrete blocks or slabs.
- Underwater cutting can be carried out on concrete where diamond saw blades
cannot be used.
- Safe operation, low labor intensity, low noise, no dust, and environmental
protection.
- Low cutting cost and high cutting efficiency.
- Flexible and convenient installation, can be used for vertical cutting and
horizontal cutting.
- It can reach the concrete cutting depth which cannot be reached by hydraulic
wall saw blade.
- The cutting depth and length are not limited, and it is highly adaptable to
different working conditions. It is the best choice for backup diamond tools
for hydraulic wall cutter.

The Advantage Of Rubber Concrete Cutting Diamond Wire Saw Rope
- Rubber better supports and adheres to diamond beads and steel wires and thus
better prevents the action of abrasive pastes, especially when the radius of
curvature of the wire is small.
- Rubber readily resists temperature increases due to poorly controlled water
cooling (which often occurs in concrete work), whereas plastic softens and
loses its strength properties for diamond beads and wire.
- Flexible steel wires work better with high-quality rubber, thus reducing the
risk of uneven wear of the diamond beads resulting in uneven and non-uniform
cuts.
- 30-55KW wire saws are mostly used for concrete cutting wire saws and the
water feed is set between 20-40 L/min depending on the specifications of the
cutting object.

Tips For Using Concrete Diamond Wire Saws
- The movement of the diamond wire saw should be checked from time to time to
avoid accidents.
- The consumption of diamond beads should be checked from time to time to avoid
uneven cutting.
- Wear and tear of the joints, springs, and diamond beads near the joints
should be checked. The joints should be replaced if necessary.
- The tension of the wire is set between 250-300kg.
- Adjust the wire speed of the diamond rope saw according to the
characteristics of the concrete to be cut.
- At the beginning, the wire speed should be reduced by 2-3 m/s from the above
standard.
- The recommended water supply for wire sawing of concrete is 10-20
liters/minute.
