High-Speed Centrifugal Pump

Product Description
Vertical High-speed Centrifugal Pumps

File description
HSP-V vertical high-speed centrifugal pumps can replace imported high-speed
pumps and have features of good performance, compact structure and high
reliability. Their parts and components can be interchangeable with imported
products. They can replace multi-stage pumps and reciprocating pumps. Their
maximum flow rate is 120m3/h, maximum head is 1920m, maximum suction pressure
is 6.8MPaG, maximum power is 160KW and working temperature range is -130º
C~+340º C.

NOPump Type HSP-V1 HSP-V2 HSP-V4A
1Max. Flow (m3/h) 150 52 250
2Max. Head (m) 1920 915 2180
3Max. Motor Power(kW) 132 37 315
4Speed Range (rpm) 4950~23700 4900~14179 4950~23700

Horizontal High-speed Centrifugal Pumps

File description

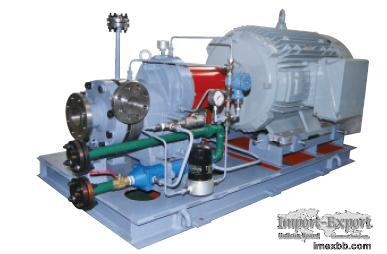

HSP-H horizontal high-speed centrifugal pumps are single-stage, single-suction
and overhung pumps, which are mainly composed of motor, gearbox, pump unit,
lubrication system and base plate. They have features of stable characteristic
parameters, simple structures, easy maintenance, high reliability and long
serve life. A backflow stabilizer is integrated into the GSB-W5/W7 pump units,
which improves the pump performances at the low flow section and broadens the
flow regulating ranges. Advanced high speed thrust bearings are adopted, which
enables the suction pressure to reach 10.0 MPa.

Detailed profile
NO Pump Type HSP-H 3A HSP-H 4 HSP-H 5 HSP-H 7
1Max. Flow ( m3/h) 110 30 250 300
2Max. Head (m) 650 500 3000 3600
3Max. Motor Power(kW) 132 37 400 600
4Speed Range (rpm) 6700~9800 6100~30000 7000~16000 7000~19000

Minimum Order: 1 sets
