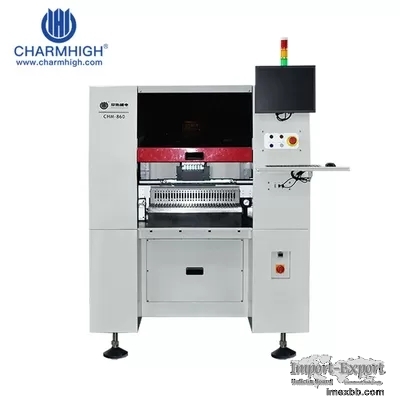

High Speed Mounting Accuracy ±50μm@μ±3σ/chip Vertical SMT Placement Machine

Product Description
High Speed Vertical SMT Placement Machine Auto Nozzle Change

High Speed Mounting Accuracy ±50μm@μ±3σ/chip Vertical SMT Placement
Machine Auto Nozzle Change 0

CHM-860 Specifications
Dimensions 1320mm(L)×1440mm(W)×1530mm(H)
Weight 1100kg
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Japan PISCO vacuum generator
Mounting Head Quantity 6
Mounting Speed 22000cph (optimal)
Mounting Accuracy ±50μm@μ±3σ/chip
Control Accuracy 4μm
Component Height 12mm
Component Type
0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/I , C, etc.)

PCB Thickness 0.6mm~3.5mm
PCB Size
400mm(L)×350mm(W) (standard);

800mm(L)×350mm(W) (optional)

PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (31-hole nozzle library)
Control System
Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

Drive System X&Y axis driven by Panasonic A6 servo motors (Y axis by double
motors); adopting flexible S-curve acceleration and deceleration
Transmission System X&Y axis adopting TBI ground ball screw and HIWIN
linear guide (Y axis with double screws)
Feeding System
60 NXT 8mm standard feeder stacks



(also suitable for IC tray and stick feeder)

Vision System
Fly camera×6 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2



Description:


CHM-860 is a high-confuguration pick and palce machine from Charmhigh, our
engineer researched 2-3 years, It is a perfect model, with high quality
machinery part, it will meet all customer demand machine. Our factory also use
8 series model for batch production, very stable. It can install NXT eletric
feeeder. We strong recommend to you!
