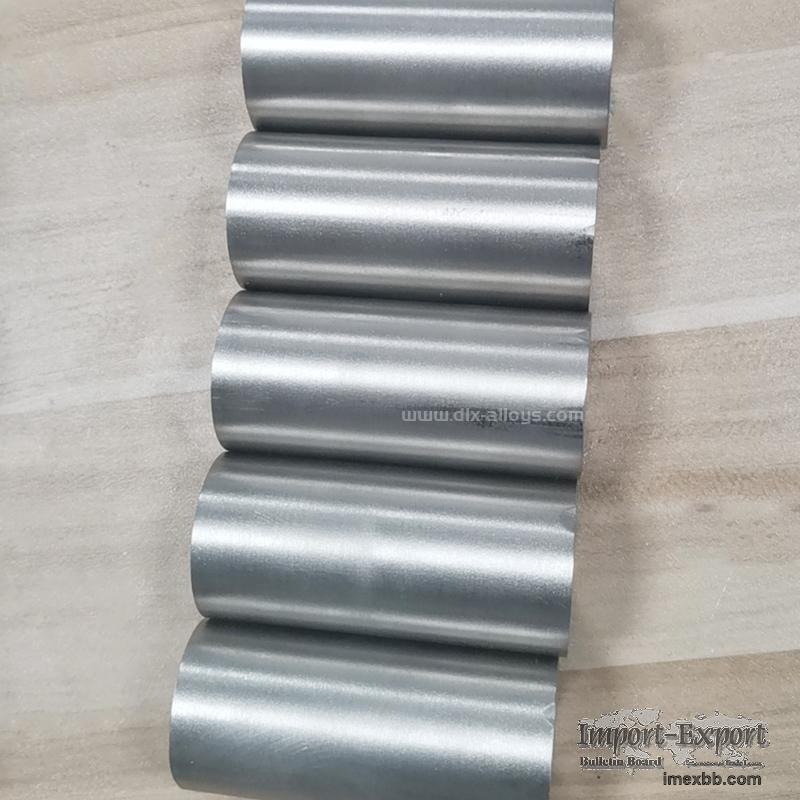

High Temperature Alloy Bar GH3044 Alloy Rod For Aero Engine Combustion Cham

High-temperature alloy refers to a type of metal material based on iron,
nickel, and cobalt, designed to operate for long periods at high temperatures
above 600°C under stress. It exhibits high-temperature strength, good
oxidation resistance, corrosion resistance, excellent fatigue performance, and
fracture toughness, making it highly suitable for extreme environments. These
alloys have a single austenite structure, ensuring good organizational
stability and reliability at various temperatures.

Due to these exceptional properties and high degree of alloying, high-
temperature alloys are often referred to as "superalloys." They are vital
materials in many industries, including aviation, aerospace, petroleum,
chemical, and maritime sectors. High-temperature alloys are typically
classified into iron-based, nickel-based, and cobalt-based alloys. Iron-based
high-temperature alloys generally reach temperatures of 750-780°C, whereas
nickel-based and refractory metal-based alloys are used for applications
requiring higher temperatures. Nickel-based high-temperature alloys are
especially important and are extensively used in manufacturing components such
as the hottest parts of jet engines and industrial gas turbines.

Key Features

High-Temperature Resistance:
GH3044 alloy rods can withstand high temperatures up to 1000°C, making them
ideal for use in environments like aero engine combustion chambers and gas
turbines.

Excellent Oxidation and Corrosion Resistance:
The alloy’s high chromium and nickel content offer superior protection against
oxidation and corrosion, ensuring reliable performance in extreme environments
such as chemical reactors and marine applications.

Superior Mechanical Strength:
GH3044 alloy exhibits excellent tensile strength and resistance to mechanical
stress, even under high temperatures. This makes it a dependable choice for
parts exposed to high thermal and mechanical loads.

Creep Resistance:
The alloy has outstanding resistance to creep, ensuring that it maintains its
shape and dimensions even after prolonged exposure to high stress and
temperature.

Weldability and Machinability:
GH3044 alloy rods are easy to weld using standard techniques like TIG and MIG
welding. The material can also be machined to complex geometries, making it
suitable for customized components.

Long Service Life:
With its ability to resist fatigue, corrosion, and high-temperature stress,
GH3044 alloy offers a long service life, reducing the need for frequent
replacements in demanding applications.
Manufacturing Process

Melting
The process begins with melting high-purity raw materials in an electric arc
furnace or induction furnace. The molten metal is refined to remove impurities
and achieve the desired chemical composition.

Casting
Once refined, the alloy is cast into ingots, which are then heat-treated to
eliminate segregation and ensure uniformity.

Forging
The ingots are hot-forged at temperatures above 1100°C to form the desired
shape and improve the alloy's microstructure. This step enhances the mechanical
properties of the material.

Hot Rolling
Following forging, the material is hot-rolled to reduce thickness and achieve
the final bar dimensions, improving the alloy's directional properties.

Annealing
The rolled bars are annealed at temperatures around 900-950°C to relieve
internal stresses and improve ductility, preparing them for final machining.

Finishing
The final step involves cutting the bars to required lengths and applying
surface treatments such as grinding, polishing, or coating to protect against
environmental factors.
