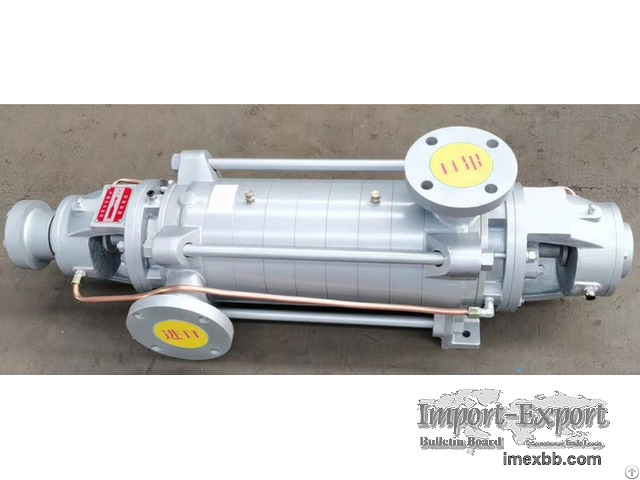

High Temperature Multistage Water Pump For Steam Recovery

High temperature water pump for steam recovery high temperature and high pressure
water pumps, steam high-temperature condensate water recovery pumps, steam recovery
pumps, steam recovery pumps, high-temperature and high-pressure water pumps, high-
temperature water pumps, The mechanical shaft seal must not be leak water or oil;

Pressure up to 25bar, temperature up to 2300C

Durable, small size, low in noise, and easy to maintain.

Usage:

Commonly used for water supply pressurization, boiler water replenishment, steam
condensate recovery, high-temperature water transportation, high-temperature and
high-pressure water pumps for boilers, multi-stage high-temperature water pumps,
steam recovery water pumps, steam condensate dedicated pumps, steam recovery pumps

Detailed introduction

1 - The pressure supporting components of the pump are thickened and the pump

casing is made of ductile iron, which has strong pressure supporting capacity.

2 - The flow components of the pump are optimized and designed using CFD flow field

analysis technology, resulting in high efficiency.

3 - The static seal between the inlet, middle, and outlet sections of the pump
adopts a

metal seal and an O-ring dual channel seal.

The pump shaft seal adopts an imported

mechanical seal, which is safe and reliable.

4 - The rotor adopts two balancing processes of static and dynamic, strictly
controlling

the rotor's weight, ensuring stable pump operation and low vibration.

5 - The bearing is directly installed on the pump shaft to reduce assembly errors.

The

bearing adopts an enlarged design, with strong bearing capacity and long service
life.

6 - The shaft is forged with high-quality heat-resistant chromium molybdenum alloy

steel, which has undergone multiple heat treatments, non-destructive testing, and

precision processing.

It has high precision, good rigidity, and good stability during high

operation.

7 - The pump is designed for high-temperature condensate recovery, using corrosion-

resistant, high-temperature resistant, and cavitation resistant materials.

A first stage

impeller is added, which has better corrosion and cavitation resistance.

The maximum

operating temperature can reach 220

0C, and the maximum working pressure can reach

30KG/cm

2

8 - Adopting a unique shaft shoulder positioning structure, the impeller
positioning is

more reliable and safe to operate.

Suitable for high-temperature condensate recovery, boiler water supply, and can
also be used for water supply and drainage in factories, cities, and mines.

Features:

1 - The pump structure is sturdy, and the pump casing has undergone water pressure

testing.

It adopts a mechanical shaft seal, which has a good leak prevention effect

2 - The moving impellers are all balanced and calibrated, and will not vibrate
during

operation.

3 - Through special design, the operating temperature can reach 220

degree celsius and the maximum pressure can reach 30KG/CM2

4 - The product has excellent performance and reliable quality.

Minimum Order: 1 sets
