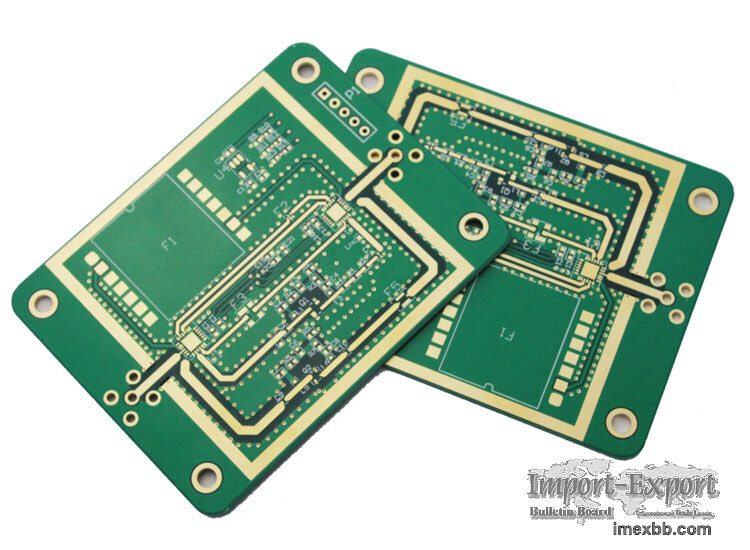

High-TG PCB

Glass Transition Temperature is referred to as Tg, and FR4 is a designation for
a particular type of epoxy glass.

Normal FR4 Tg ranges from 130 to 140 degrees, moderate Tg is higher than 150 to
160 degrees, and high pcb tg is more than 170 degrees.

The performance of PCB anti-moisture heat resistance, chemical resistance,
quality stability, and other properties improves as Tg increases.

Tg 170°C PCB material is referred to as a high Tg PCB. Greenstone is a China
high tg pcb supplier which can provide satisfied high tg pcb. These days,
computers, precision instruments, communication devices, etc., all frequently
use high Tg materials.

Uses and Applications of High TG PCB
As usual, made with Tg ≥ 170℃ SMT PCB material, which is called a high Tg
printed circuit board. With the rapid development of the electronics industry,
high Tg material is widely used in

computers

communication equipment

precise apparatus

Instruments

Power supply devices

GreensTone High-Tg PCB manufacturing capabilities
Feature Capability
Material Tg140 FR-4,Tg150 FR-4,Tg170 FR-4,Tg150 FR-4 ,Tg170 FR-4
Min. Track/Spacing 2mil
Min. Hole Size 0.15mm
Finished Cooper 0.5-8oz
Board Thickness 0.2-6mm
Surface Finishing HASL lead free, Immersion Silver, Immersion gold, OSP,
Hard Gold.
Solder Mask Green, Red, Yellow, Matte Black, Matte green, Blue, White,
Black,
Silkscreen White, Black
Via Process Plugged Vias, Tenting Vias, Vias not covered
Testing Fly Probe Testing (Free), fixture test and A.O.I. testing
Build time 7-10 working days
Lead time 3-5 working days

If you want to know more kinds of electronic manufacturing service china,
please visit our website.
