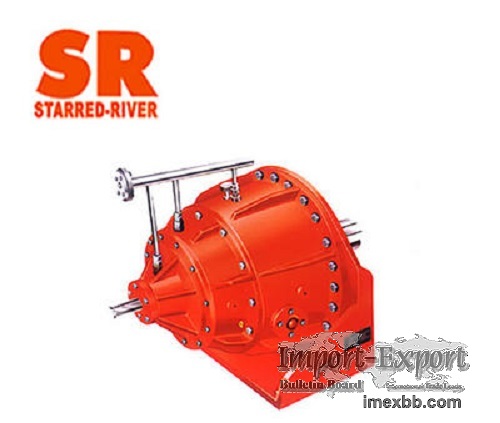

High Torque Planetary Gear Reducer

Technical parameters:

Nominal torque: 1400 N.m~2987000 N.m

Transmission rate: Single-stage: 4~18

Double-stage: 20~125

Three-stage: 112~1250

The gear box of the high torque planetary gear reducer is made of high-
rigidity materials, which greatly improves the rigidity and impact
resistance of the box body, which not only reduces the noise, but also
improves the efficiency and service life of the whole machine. The high
torque planetary gear reducer has the characteristics of small size,strong
bearing capacity, stable operation, long life, low noise and high
efficiency. High-speed shaft speed is less than 1500r/min, gear peripheral
speed is not more than 20m/s; ambient temperature is between -40°C~+45°C;
both forward and backward operation is possible. Planetary gear units are
mainly used in metallurgy, mining,heavy duty, crane transportation,
machinery equipment, etc.

https://www.china-sr.com/product/indus , trial-gearboxes/high-torque-
planetary-gear-red , ucer.html

Minimum Order: 100 pieces
